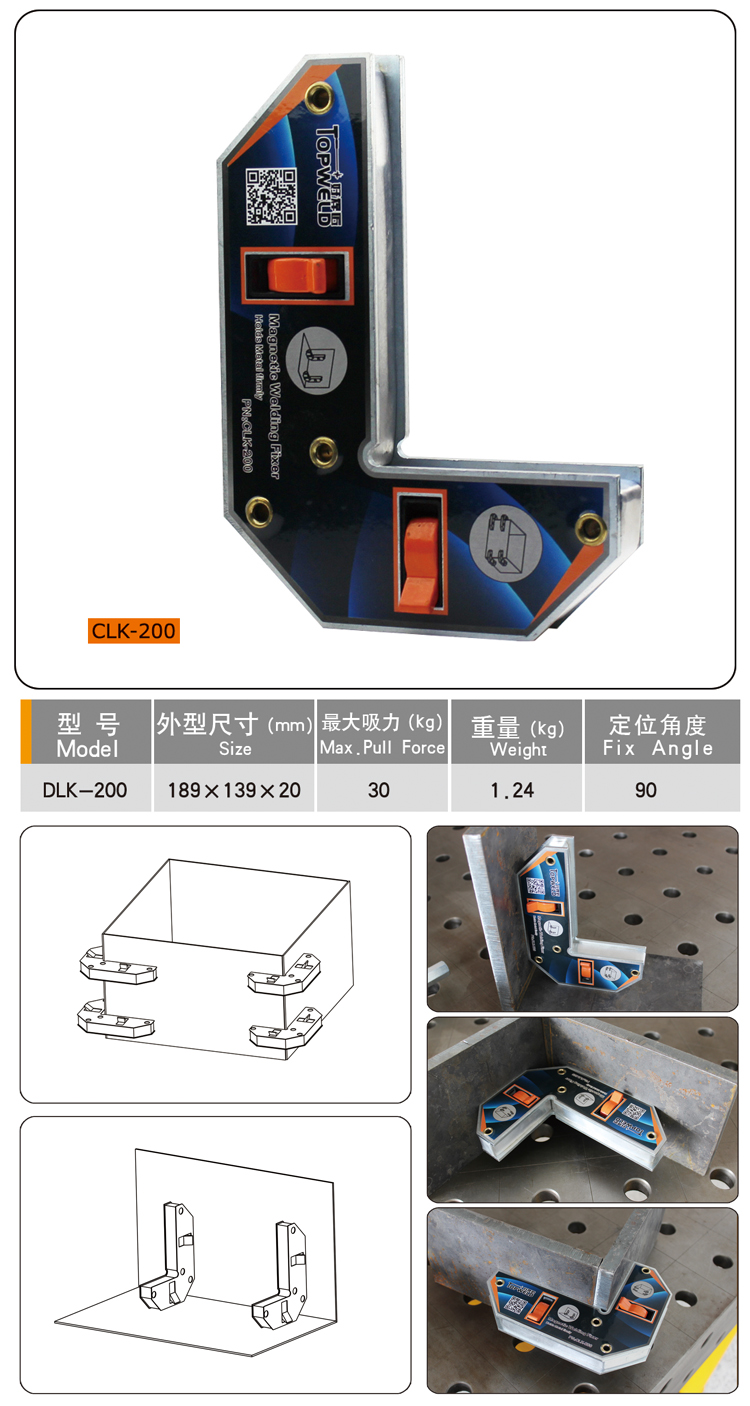

Dual -Switch Magnetic Welding Fixer

CLK-200

Dual -Switch Magnetic Welding Fixer

application:Industrial

catalogue CAD data

Product size diagram
Product size and properties
Model Number Weight(kg) bottomOrientation Angle Max Attraction(kg) bottomDimensions(mm) Width of jaw(mm) bottomOpening length(mm) bottomClamping height(mm) bottomMax Clampping Force(kg) bottomLength(mm) bottomThroat deepth(mm) bottomClamping Force(kg) bottomThe guide rail section(mm) bottomSliding rail(mm) bottomLocation hole(mm) bottom 3D DRAWINGS
CLK-200 1.24 30 60 90 120 30 189*139*20 / / / / / / / / / /
characteristic

Two on / off switches for independent operation

Inside edges can hold and weld at 90°,the outside of the magnet can hold at 30° 60° 120°

Available services

Ideal for steel plate,circular and square tube, angle iron
