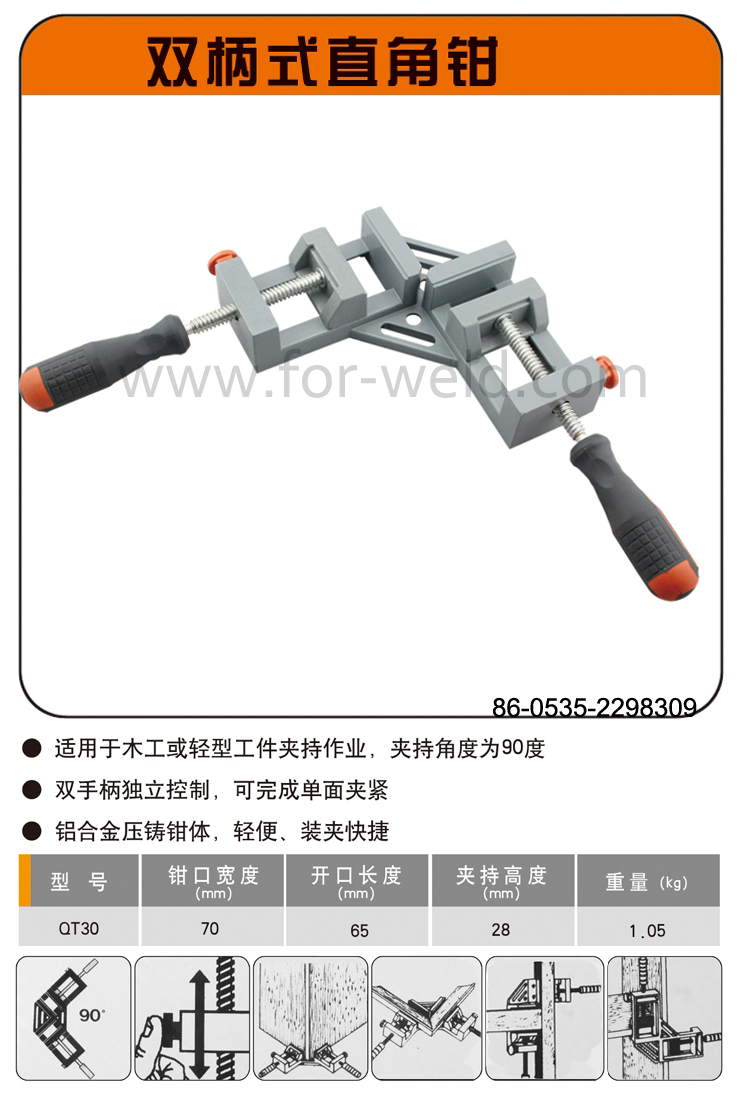

Double Handle Angle Clamp

QT30

Double Handle Angle Clamp

Aluminum Alloy Die Casting

application:Wooden work or light steel clamping operation,90 degree clamping angle

catalogue CAD data

Product size diagram
Product size and properties
Model Number Weight(kg) bottomOrientation Angle Max Attraction(kg) bottomDimensions(mm) Width of jaw(mm) bottomOpening length(mm) bottomClamping height(mm) bottomMax Clampping Force(kg) bottomLength(mm) bottomThroat deepth(mm) bottomClamping Force(kg) bottomThe guide rail section(mm) bottomSliding rail(mm) bottomLocation hole(mm) bottom 3D DRAWINGS
QT30 1.05 / / / 70 65 28 / / / / / / /
characteristic

Aluminum alloy die-casting,light weight and quick to clamp

Double handle independent control, can complete one side clampinp
