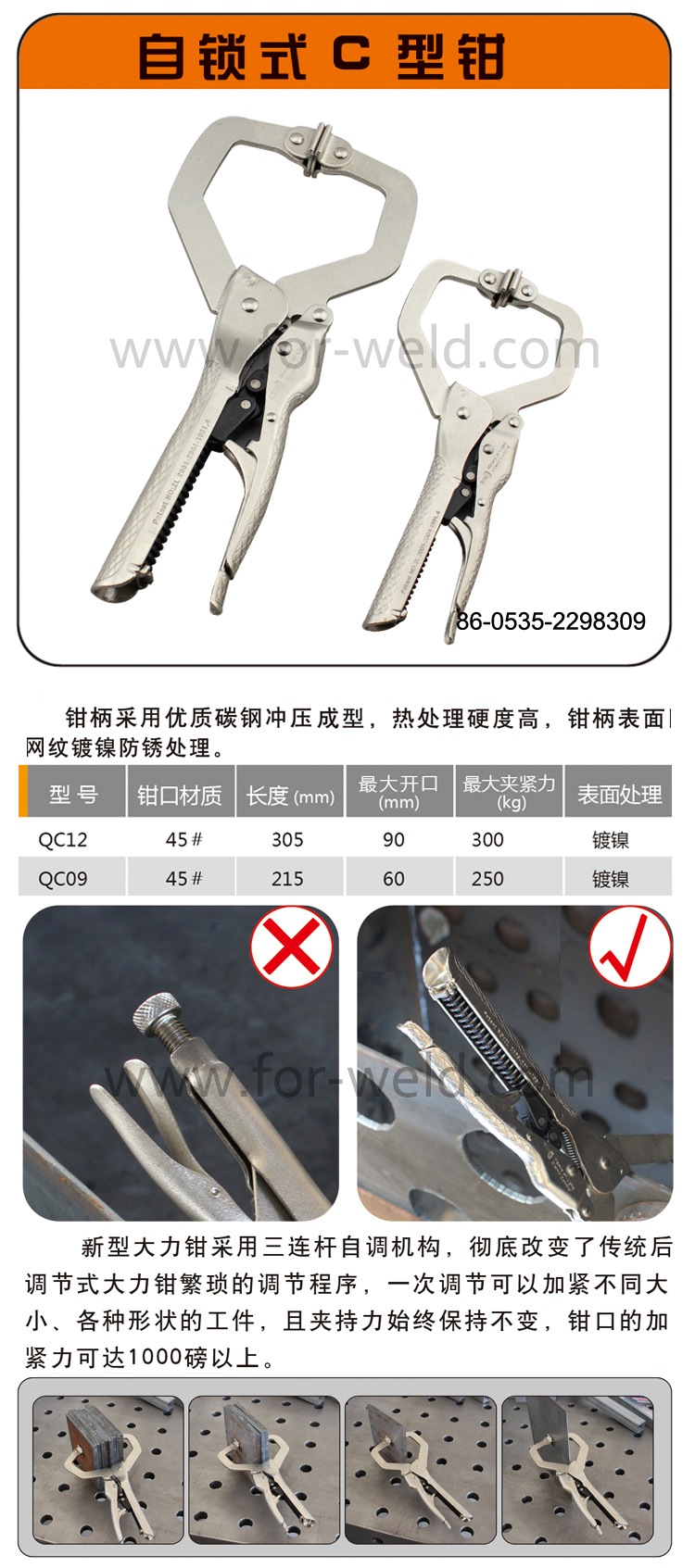

Self-locking Pliers

QC series

Self-locking Pliers

Carbon steel stamping clamp handle

application:Industrial production, machinery and equipment, etc

catalogue CAD data

Product size diagram
Product size and properties
Model Number Weight(kg) bottomOrientation Angle Max Attraction(kg) bottomDimensions(mm) Width of jaw(mm) bottomOpening length(mm) bottomClamping height(mm) bottomMax Clampping Force(kg) bottomLength(mm) bottomThroat deepth(mm) bottomClamping Force(kg) bottomThe guide rail section(mm) bottomSliding rail(mm) bottomLocation hole(mm) bottom 3D DRAWINGS
QC12 / / / / / 90 / 300 305 / / / / /
QC09 / / / / / 60 / 250 215 / / / / /
characteristic

Handle is made of high quality carbon steel stamping and is formed by forging.

High hardness of heat treatment.

The surface of the clamp handle is nickel plated finish to proof the rust

Adopts three - link self - adjusting mechanism,

Completely changed the traditional regulation procedure

One time adjustment can clamping different size, various shapes of the workpiece, and the clamping force remains unchanged

Clamping force can reach more than 1000 pounds.
