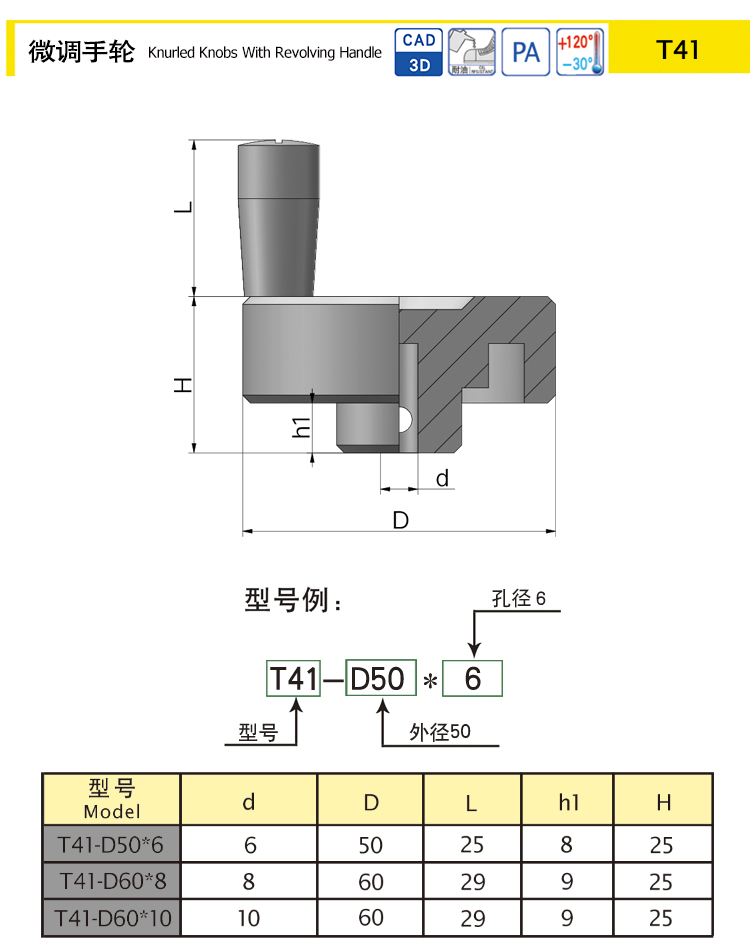

Model Number | H ![]() | L1 ![]() | Material ![]() | B ![]() | D1 ![]() | M ![]() | R ![]() | H2 ![]() | d1 ![]() | d2 ![]() | h | d ![]() | D ![]() | L ![]() | h1 ![]() | r ![]() | s ![]() | a ![]() | b ![]() | I ![]() | d4 ![]() | f ![]() |
3D DRAWINGS |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
T41-D50-6 | 25 | / | Polyamide(PA) high tech polymer | / | 50 | / | / | / | / | / | / | 6 | / | 25 | 8 | / | / | / | / | / | / | / | |
T41-D60-8 | 25 | / | Polyamide(PA) high tech polymer | / | 60 | / | / | / | / | / | / | 8 | / | 29 | 9 | / | / | / | / | / | / | / | |
T41-D60-10 | 25 | / | Polyamide(PA) high tech polymer | / | 60 | / | / | / | / | / | / | 10 | / | 29 | 9 | / | / | / | / | / | / | / |

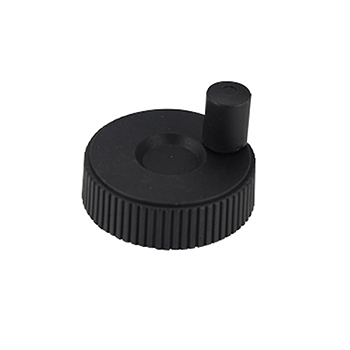

Resistance to chemical solvents,greasy dirt,Special use of fine adjustment hand wheel
1. Non-standard, Length can be customized; 2. Optional screws; 3. Ultrasonic cleaning and dust-free packaging
