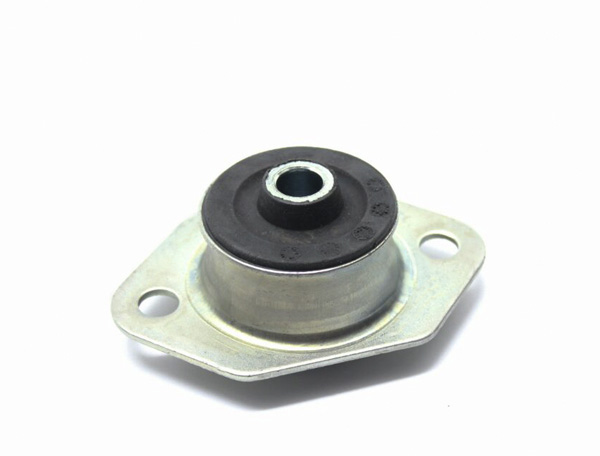

Bell Type Rubber Damper

J10

Bell Type Rubber Damper

Rubber

application:Genset Compressors electro motor Fans/Air Conditioners Pump ndustrial and mining machinery etc

catalogue CAD data

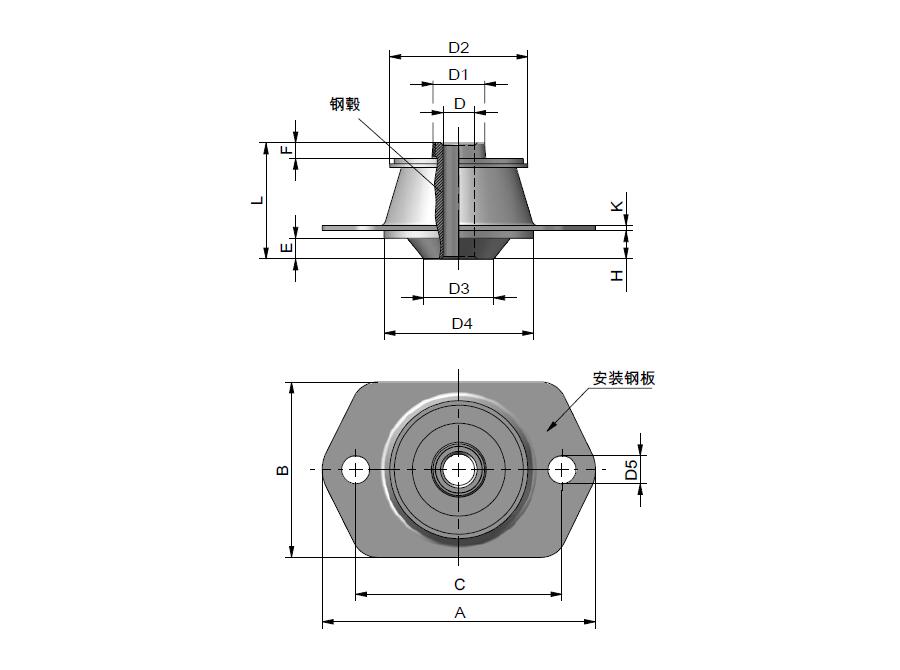

Product size diagram
Product size and properties
Model Number Material bottomDiameter bottomD4 bottomLength bottomHeight bottomT bottomM bottomA bottomB bottomC bottomD5 bottomK bottomMaximum load (N) bottomOptimum compression(mm) bottom 3D DRAWINGS
J10-46-8 Rubber 8 46 23 / / / 84 50 64 6.5 2 60 /
J10-48-12 Rubber 12 48 30 / / / 89 54 73 8.7 2 55 /
J10-60-12 Rubber 12 60 45 / / / 107 68 80 11 2.5 165 /
characteristic

Feature :Bell design, large bearing capacity

Perfect combination of rubber and metal parts. Realize better shock absorption

Anti-vibration mount for stationary equipment with protective cover.
