Panel Cabinet Lock

E02

Panel Cabinet Lock

Zinc Alloy

application:Case, cabinet, electrical box, instrument box, etc

catalogue CAD data

Product size diagram
Product size and properties
Model Number Material bottomLength(mm) bottomColor bottomWith Key bottomFinish bottomWeight (g) bottom 3D DRAWINGS

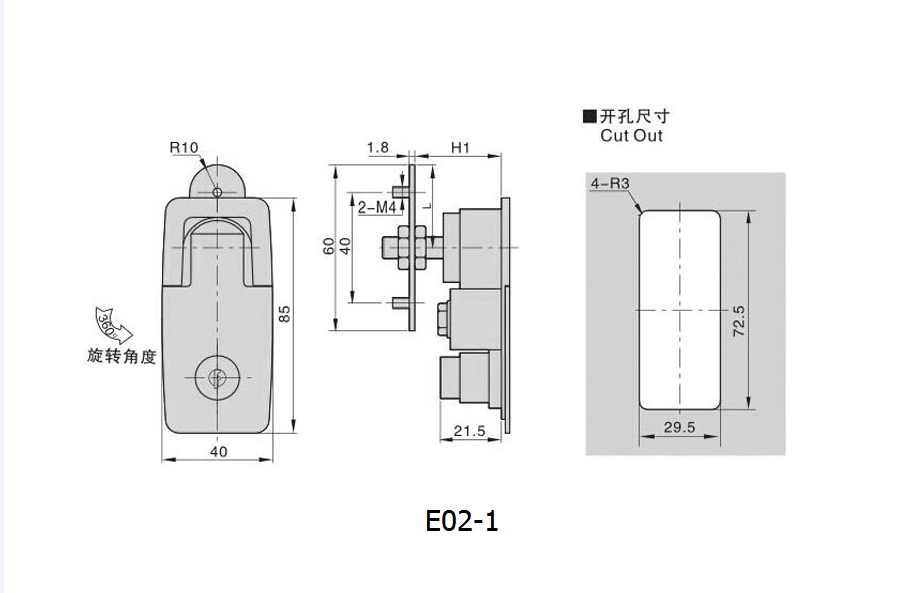

E02-1 Zinc Alloy 85 Matte Black With Key Powder Coating 220

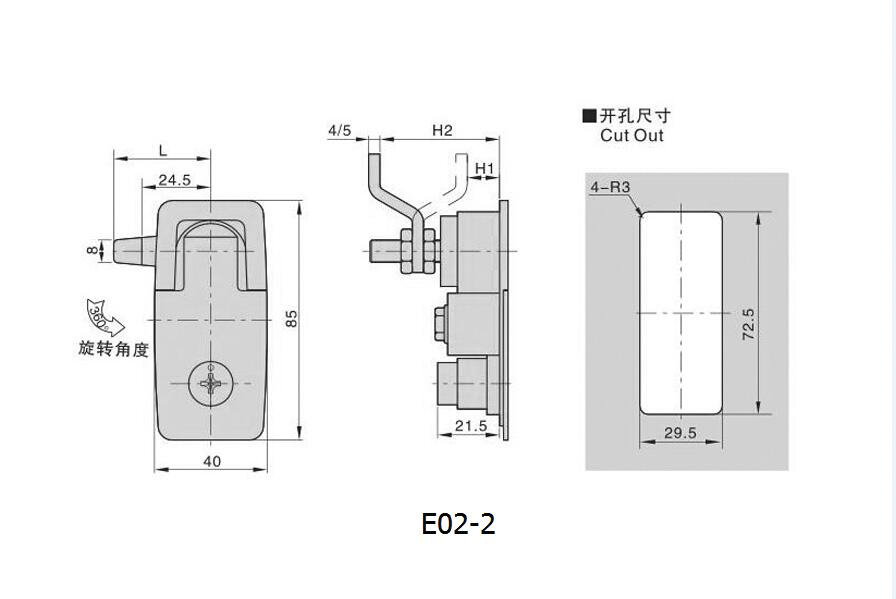

E02-2 Zinc Alloy 85 Matte Black With Key Powder Coating 210

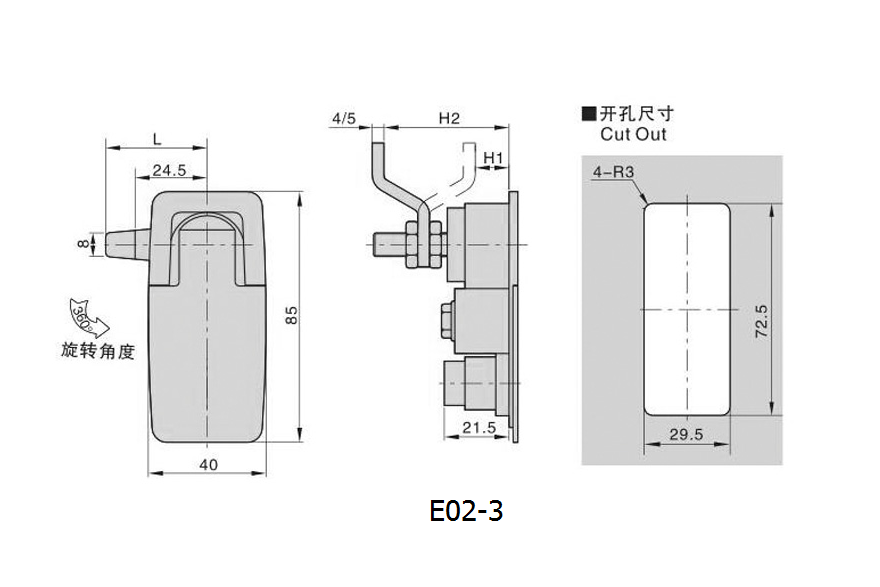

E02-3 Zinc Alloy 85 Matte Black Without Key Powder Coating 200
characteristic

Material: Zinc alloy lock body, galvanized stamping plate,locking plate

Applicable thickness of door plate: 1~3.5mm

Note: compression lock, the compression quantity is 3mm
