When choosing a hinge for an industrial cabinet or electrical enclosure, it is easy to focus only on the size or appearance of the component. In practice, the opening angle, load capacity, installation requirements, and long-term usability are just as important. A hinge needs to do its job reliably every time the door is opened or closed, especially in equipment that is accessed regularly for inspection and maintenance.

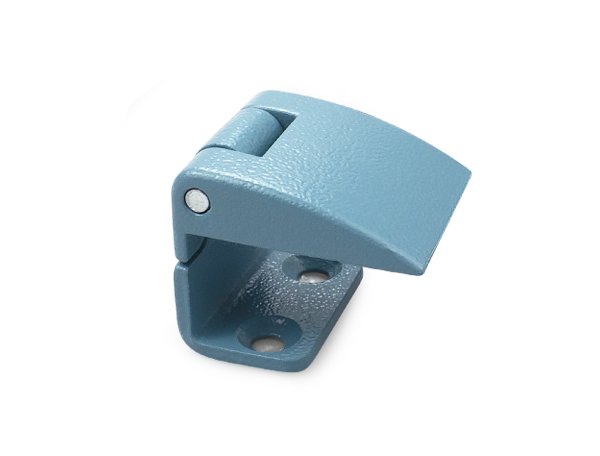

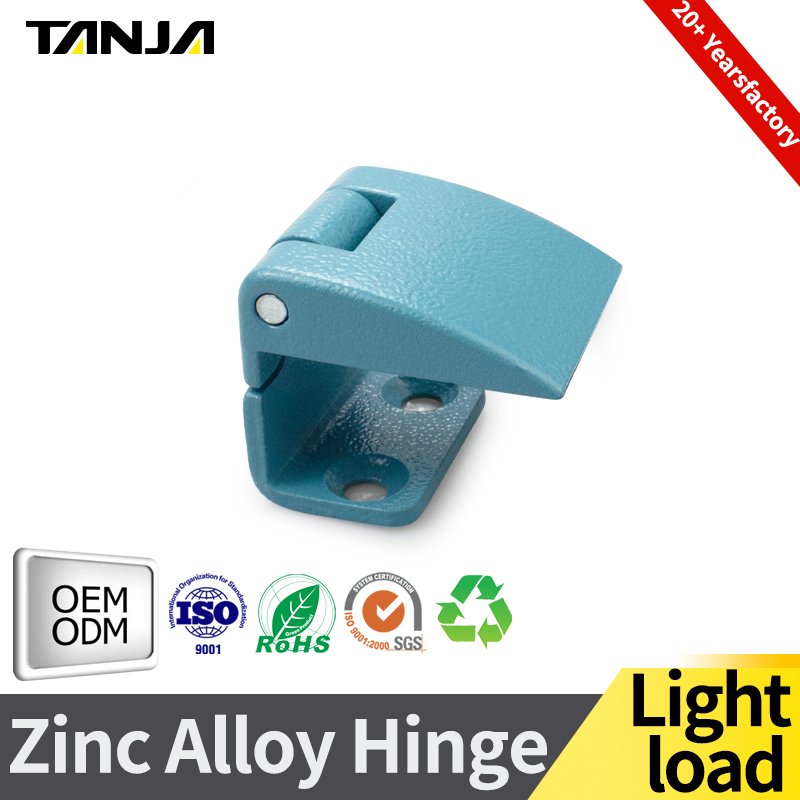

The Tanja K140 Zinc Alloy Hinge is designed for applications where controlled door movement and dependable support matter. With a maximum opening angle of 180°, it allows cabinet doors and enclosure panels to open wide, making it easier for technicians to access internal components. Its specified static load ratings also provide useful reference points for engineers and purchasing teams when selecting hardware for their equipment.
Space around industrial equipment is not always generous. A control cabinet may be installed close to a wall, while a distribution box could be positioned in a crowded equipment room. In these situations, the hinge can affect how conveniently the door opens and how easily a technician can reach the components inside.
The K140 supports a maximum opening angle of 180°. This wide opening range can be useful when a cabinet needs to provide clear access for wiring, inspection, troubleshooting, or routine maintenance.
For equipment manufacturers, door movement is a practical part of the overall design. A suitable hinge helps the door open to the intended position without unnecessarily restricting access. When selecting the K140, buyers should also check the cabinet layout, available clearance, mounting position, and surrounding components to make sure the full opening angle can be used in the finished assembly.

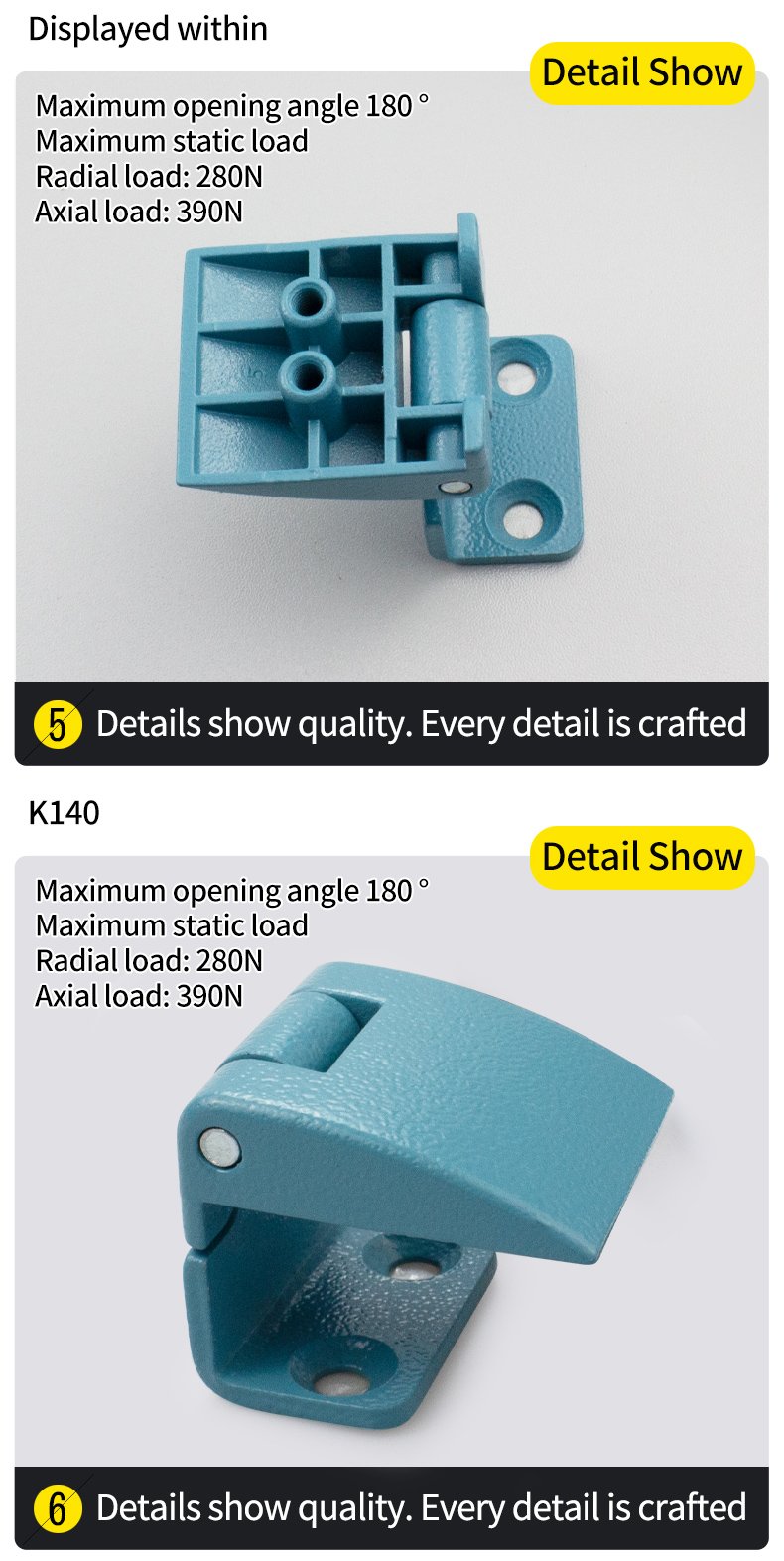

Load capacity is another important consideration when choosing industrial hinges. The Tanja K140 has the following specified maximum static load ratings:
Radial load: 280 N
Axial load: 390 N
These figures give engineers a starting point for evaluating whether the hinge is suitable for a particular cabinet door or enclosure design. Radial and axial loads act in different directions, so both values should be considered alongside the door's weight, dimensions, mounting arrangement, and expected service conditions.
It is worth remembering that maximum static load ratings are not the same as a recommended working load under every condition. Actual performance depends on factors such as the number of hinges used, their spacing, the quality of the mounting structure, and the forces generated during door operation.
For this reason, equipment manufacturers should assess the complete hinge installation rather than relying on a single load figure. Where doors are heavy, frequently operated, or exposed to vibration, additional checks may be needed to confirm that the selected configuration meets the application's requirements.

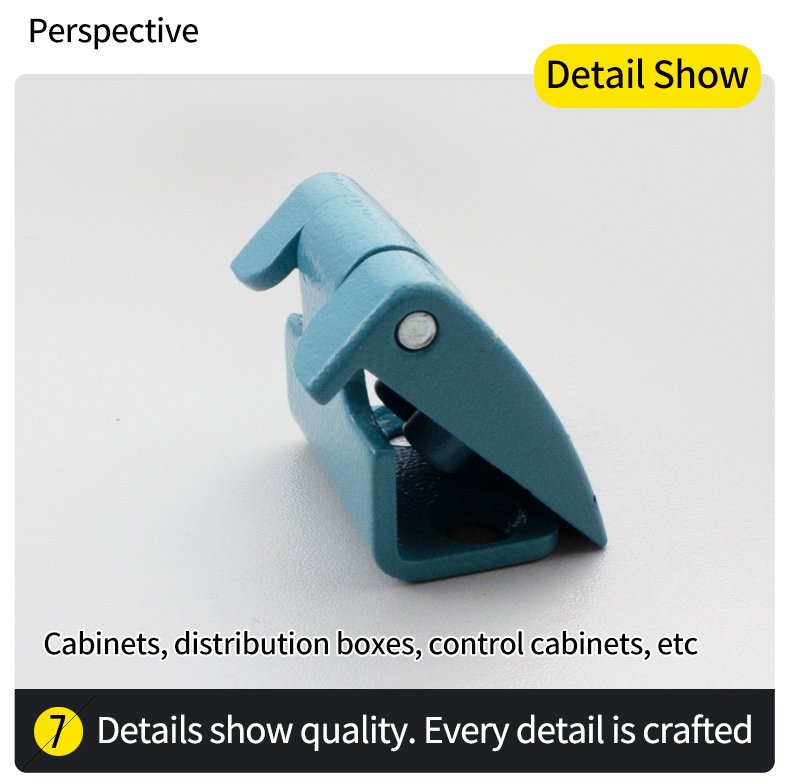

The K140 zinc alloy hinge is intended for use in cabinets, distribution boxes, control cabinets, and similar enclosures. These applications are common across industrial facilities, electrical installations, automation systems, and equipment manufacturing.
In a distribution box, the hinge needs to support the door while allowing convenient access for inspection. In a control cabinet, it becomes part of the enclosure hardware that operators and maintenance personnel interact with during routine work. For general industrial cabinets, the opening angle and load ratings help buyers assess whether the hinge fits the mechanical requirements of the design.
Choosing the right hinge early in the development process can also simplify equipment assembly. Instead of adapting the cabinet around an unsuitable component, designers can compare the hinge's specifications with the door dimensions and installation space before finalizing the structure.
For distributors and industrial hardware suppliers, the K140 can be considered for projects requiring zinc alloy hinges for cabinet and enclosure applications. Final suitability should be confirmed against the specific product drawing, mounting dimensions, and technical requirements of each project.
Zinc alloy is commonly used in hardware components that require a formed shape and a practical balance between structural performance and manufacturing flexibility. It can be used to produce detailed hinge geometries suitable for a range of equipment designs.
However, material selection should always match the working environment. For equipment installed outdoors, in humid areas, or in locations exposed to chemicals, buyers should confirm the hinge's surface finish and corrosion-resistance requirements before ordering. The available product specifications should also be checked for details such as dimensions, mounting holes, finish options, and any relevant testing information.
These checks help prevent a common purchasing problem: choosing a component based on its basic description without confirming whether it fits the actual application.
Before specifying the Tanja K140, consider a few practical questions. How heavy is the cabinet door? How far does it need to open? Is the mounting structure strong enough to support the hinge? Will the door be opened occasionally or several times a day? Does the installation environment require a particular surface finish?
Answering these questions makes it easier to determine whether the K140 is a suitable option or whether another hinge configuration would be more appropriate. It also gives purchasing teams clearer technical information to share with their suppliers.
For equipment manufacturers, cabinet builders, distributors, and industrial hardware buyers, the Tanja K140 Zinc Alloy Hinge offers a defined 180° maximum opening angle and specified radial and axial static load ratings. These details provide a practical basis for evaluating the hinge in cabinet, distribution box, and control cabinet projects.
If you are selecting hinges for a new product or reviewing the hardware used in an existing enclosure, contact the Tanja team to discuss the K140's specifications, installation requirements, and suitability for your application. Confirming these details before production can help ensure a better fit between the hinge and the finished equipment.
