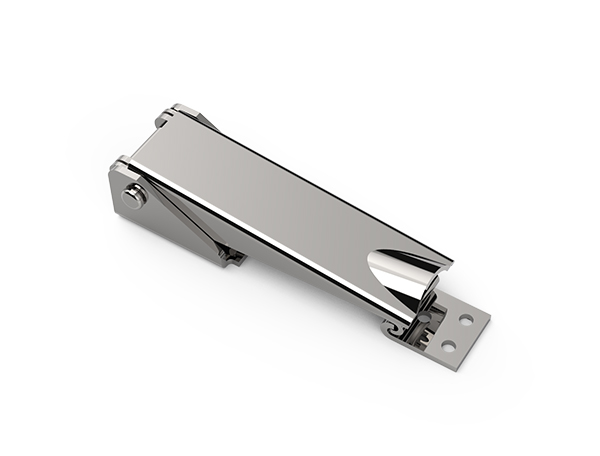

Concealed & Adjustable Toggle Latch

A307B

Concealed & Adjustable Toggle Latch

SUS304

application:Vehicles, Medical equipment, Aircraft equipment & engineering

catalogue CAD data

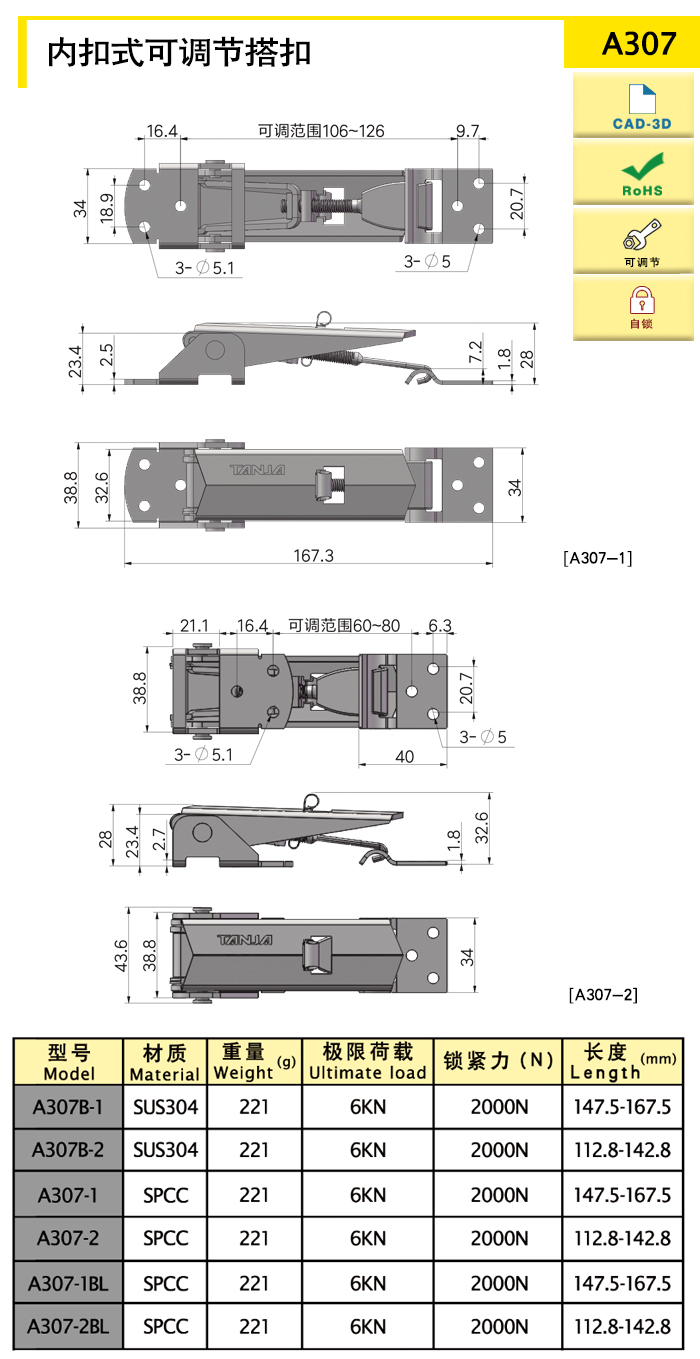

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A307B-1 Adjustable,Self lock 147.5-167.5 SUS304 221 2000 6000
A307B-2 Adjustable,Self lock 112.8-142.8 SUS304 221 2000 6000
A307-1 Adjustable,Self lock 147.5-167.5 SPCC 221 2000 6000
A307-2 Adjustable,Self lock 112.8-142.8 SPCC 221 2000 6000
A307-1BL Adjustable,Self lock 147.5-167.5 SPCC 221 2000 6000
A307-2BL Adjustable,Self lock 112.8-142.8 SPCC 221 2000 6000
characteristic

Concealed toggle latch can provide the ability to conceal all mounting hardware and latching functions under the handle. Under-center mechanism allows secure off-plane latching.

self-locking design, can prevent accidental opening,covenient and safe,Simple and elegant appearance.

Available services

Adjustable, U-shackle can adjust the mounting distance and tightness.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
