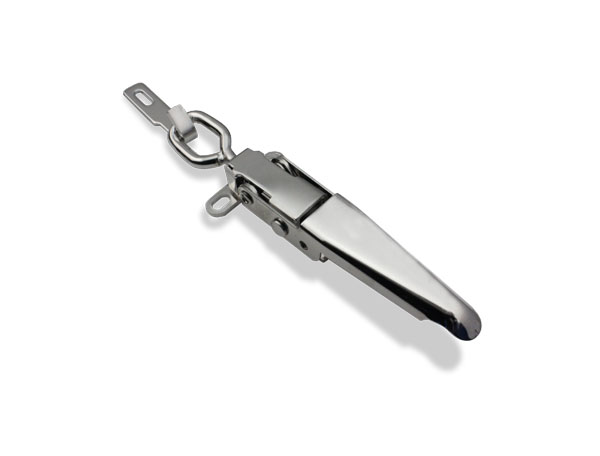

Heavy Duty Adjustable Toggle Latch

A68

Heavy Duty Adjustable Toggle Latch

Zinc plated / Polish

application:Sealed instrument or case,Refrigerator,Oven etc.

catalogue CAD data

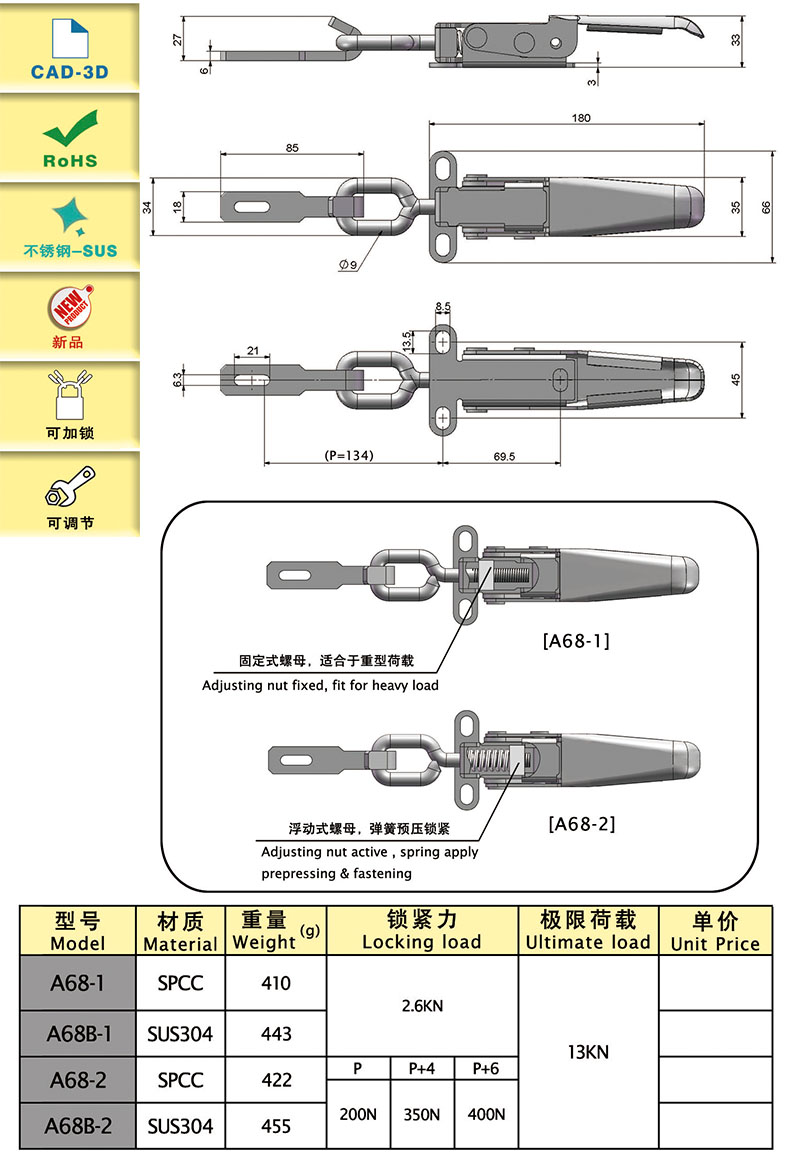

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A68-1 Adjustable,Lockable 300 SPCC 410 2600 13000
A68B-1 Adjustable,Lockable 300 SUS304 443 2600 13000
A68-2 Adjustable,Lockable 300 SPCC 422 400 13000
A68B-2 Adjustable,Lockable 300 SUS304 489 400 13000
characteristic

Adjustable hook,locking force is adjustable,flexible connection is practical

Side hole,can plug into pin to prevent loosening

Available services

A68-1,without spring,adjust nut to fix,apply prepressing

A68-2,spring inside to reduce vibration & apply prepressing.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
