Flexible & Damping Toggle Latch

A99

Flexible & Damping Toggle Latch

Zinc-plated

application:Engineering machinery, Case,Wood-working machinery

catalogue CAD data

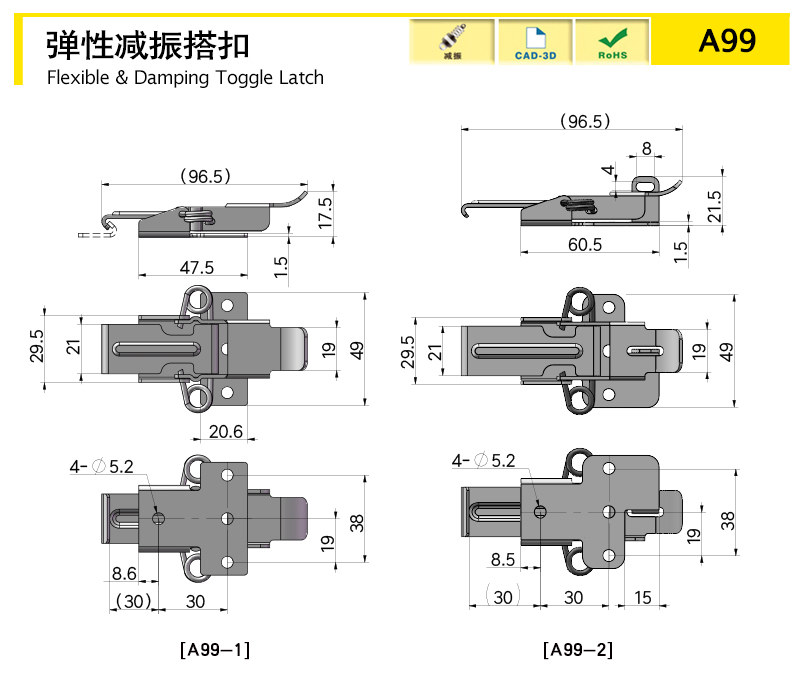

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A99 Concealed 98 SPCC 62 200 2400
characteristic

Spring on both sides can bear impact force & apply prepressing

Available services

Can fasten directly without catch.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
