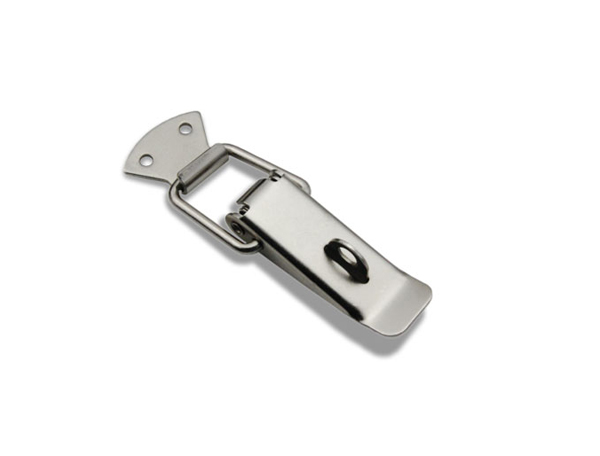

Heavy Duty Adjustable Toggle Latch

A93

Heavy Duty Adjustable Toggle Latch

Polish/Sandblast

application:Vehicles,Medical equipment,Engineering machinery

catalogue CAD data

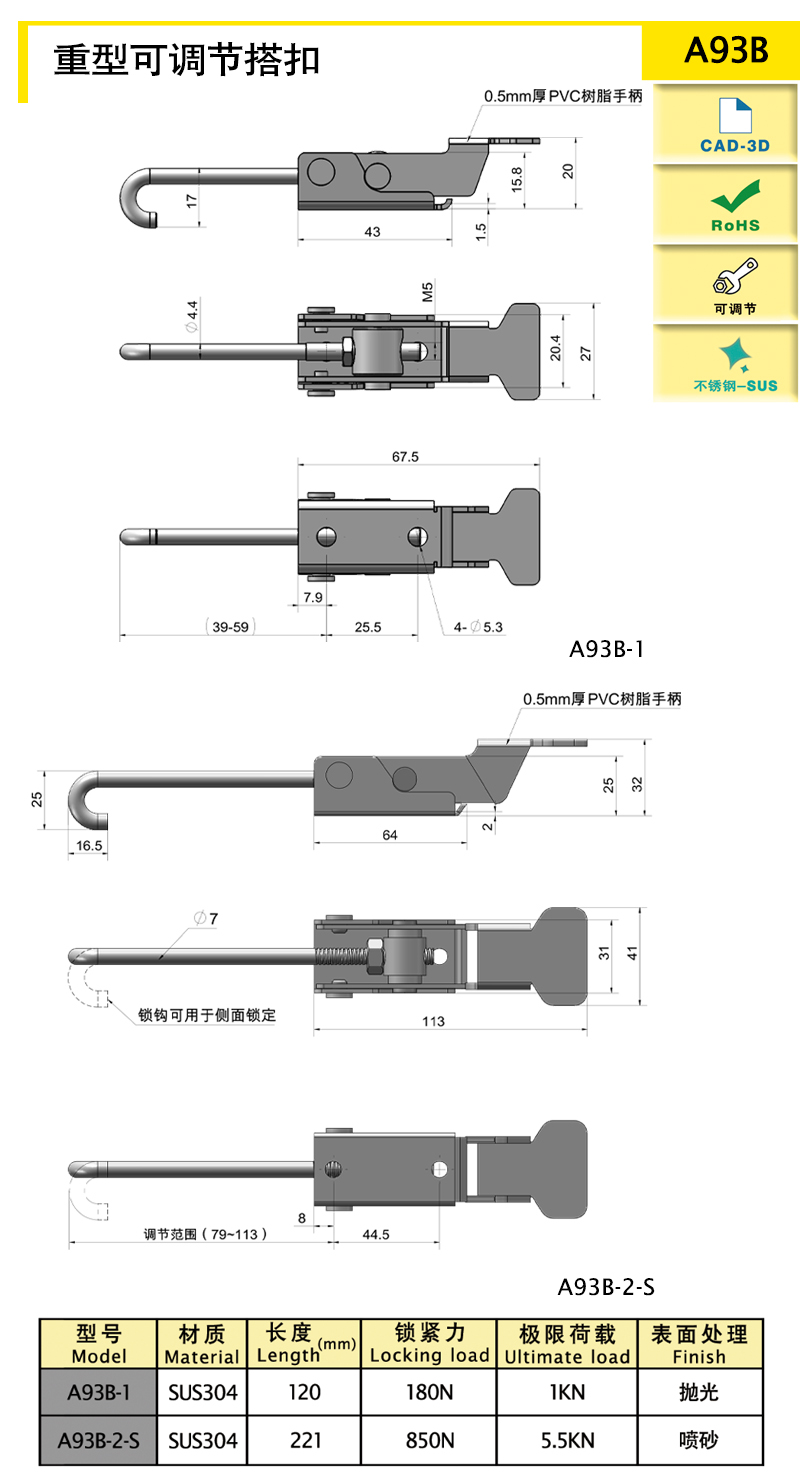

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A93B-1 Adjustable 120 SUS304 64.49 180 1000
A93B-2-S Adjustable 221 SUS304 212.76 850 5500
characteristic

Adjust hook to change the locking force

Available services

Large locking force, heavy duty.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
