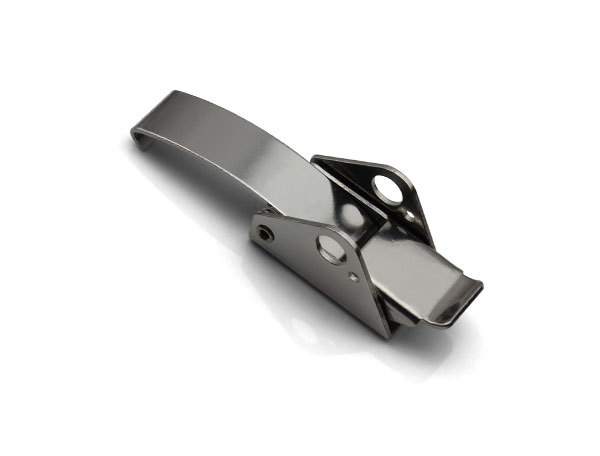

Flexible & Damping Toggle Latch

A141B

Flexible & Damping Toggle Latch

Polish

application:Small & medium-sized case cover,Mechanical equipment,Vehicles

catalogue CAD data

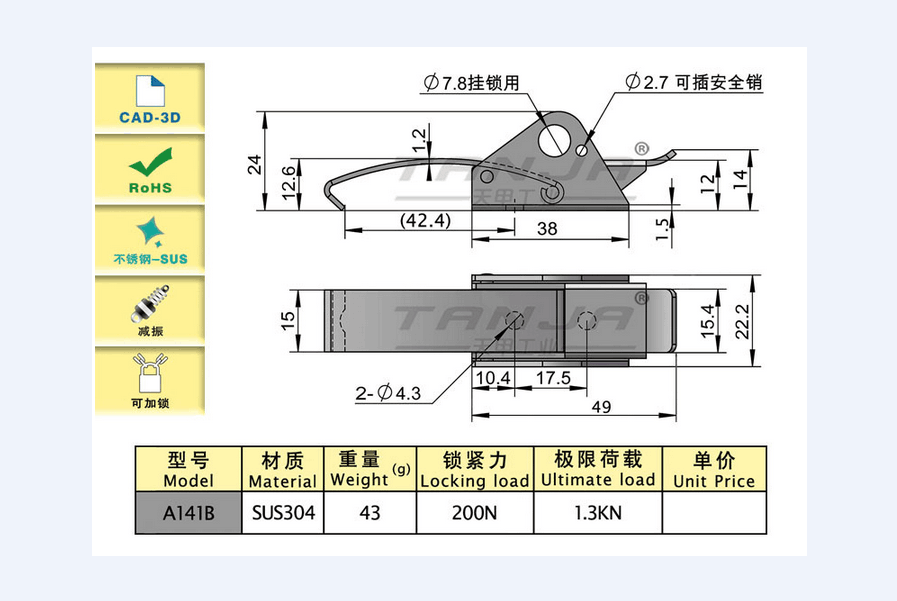

Product size diagram

Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A141B Damping 85.1 SUS304 43 200 1300
characteristic

Spring-steel hook reduce vibration

Latch looks more simple without catch

Available services

With lockhole,padlock or lead seal is available

Must choose
Please select the required product catalogue
Interested product
Company name example)Yantai Tanja Precision Machinery Co Ltd
Name of department example)Development Department
Name
Address
Telephone example)0535-621-7008
Fax example)0535-2277515-803
Email

Product Name
Flexible & Damping Toggle Latch
Free download of CAD drawings

More information

If you have more technical advice,Please call
0535-6217008-801
