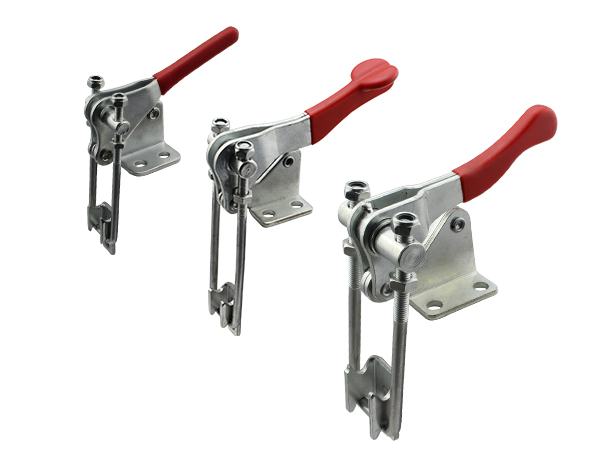

Heavy Duty Vertical Toggle Latch

40324

Heavy Duty Vertical Toggle Latch

Zinc-plated

application:Vehicle,Packing case,Mechanical equipment,Oscillatory machine

catalogue CAD data

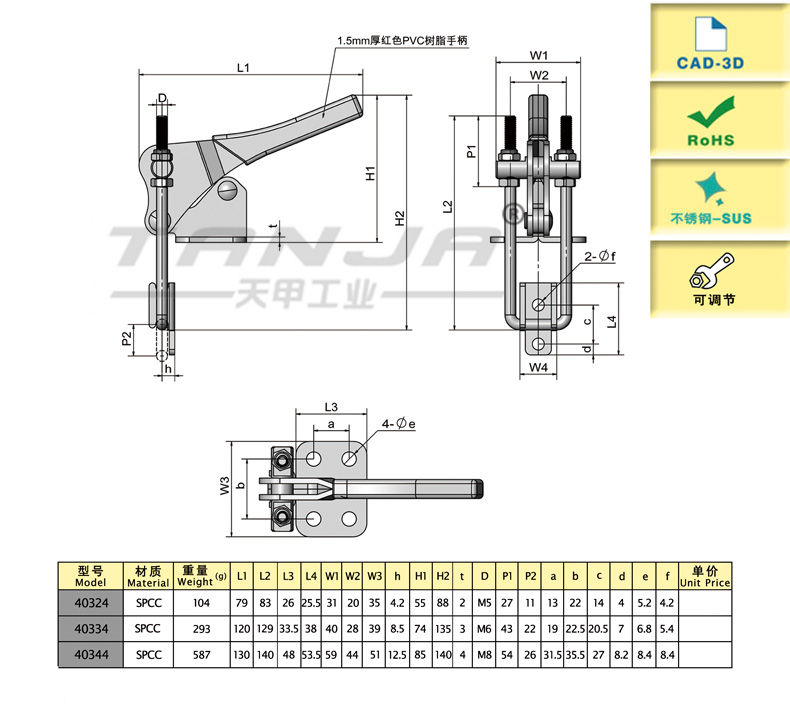

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
40324 Adjustable 80 SPCC 104 1000 8000
40334 Adjustable 121 SPCC 293 2500 11000
40344 Adjustable 131 SPCC 587 4900 23000
characteristic

U-shackle can adjust the mounting distance & tightness

Available services

Installed Vertically.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
