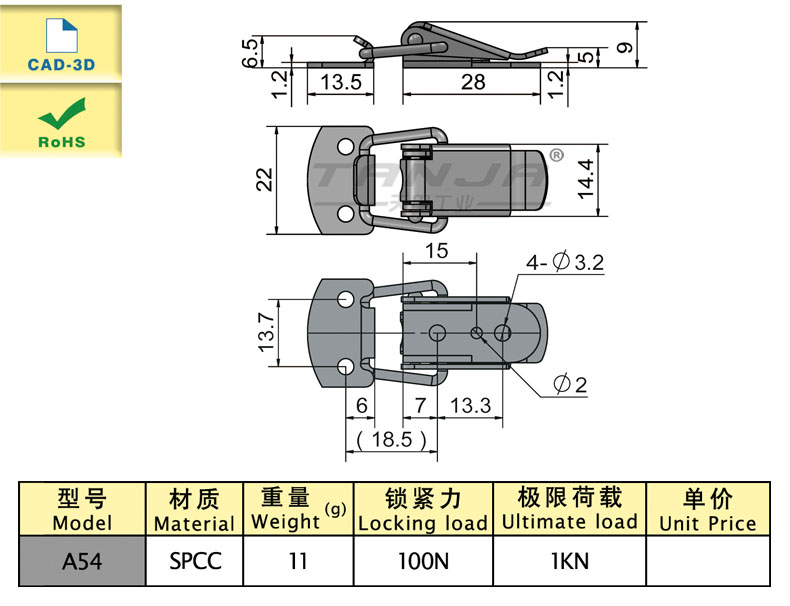

Product size diagram
Product size and properties
| Model Number | Function  | Length（mm） | Material | Weight (g) | Locking Force（N） | Ultimate Load（N） |
3D DRAWINGS |
|---|---|---|---|---|---|---|---|
| A54 | Draw latch | 47.4 | SPCC | 11 | 100 | 1000 |
 |
characteristic
Use for smaller space
Available services
Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
Product Name
Draw Latch
Draw Latch
More information
If you have more technical advice，Please call0535-6217008-801
