Safety Toggle Latch

A21

Safety Toggle Latch

Polish

application:Small &medium sized suitcase, Device box cover,Oscillatory machine

catalogue CAD data

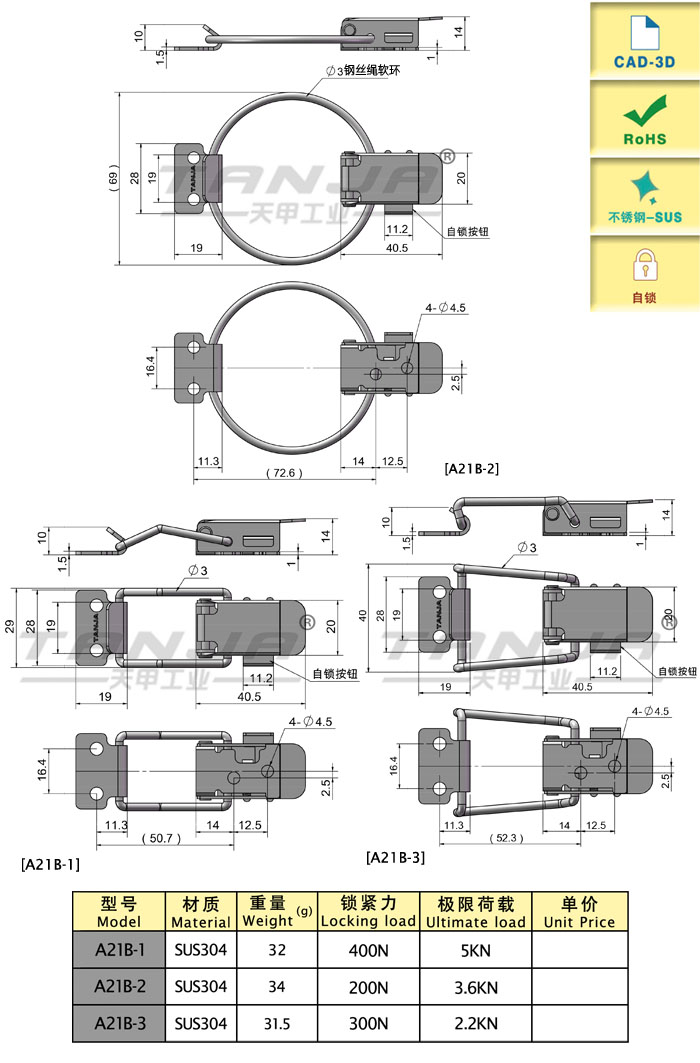

Product size diagram
Product size and properties

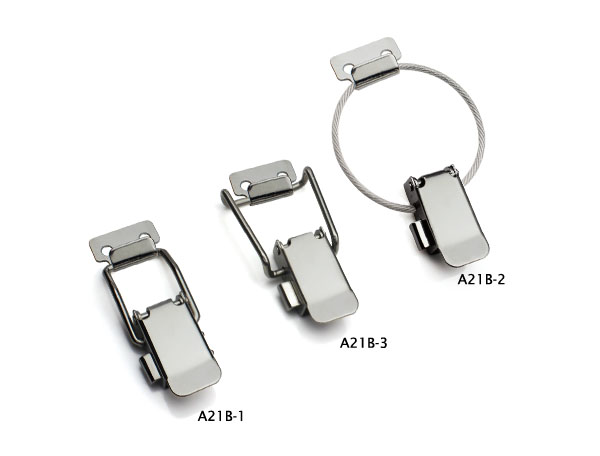

Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A21B-1 Self lock 79 SUS304 34 400 5000
A21B-2 Self lock 107 SUS304 34 200 3600
A21B-3 Self lock 83 SUS304 31.5 300 2200
characteristic

Adoption of unique self-lock design, prevent the latch accidental opening, convenient to operate

Available services

A21B-2 is fit to fix object,the length of the loop can be customized.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
