Flexible & Damping Toggle Latch

A33B

Flexible & Damping Toggle Latch

Polish

application:Precision container cover,Medical equipment,Engineering machinery

catalogue CAD data

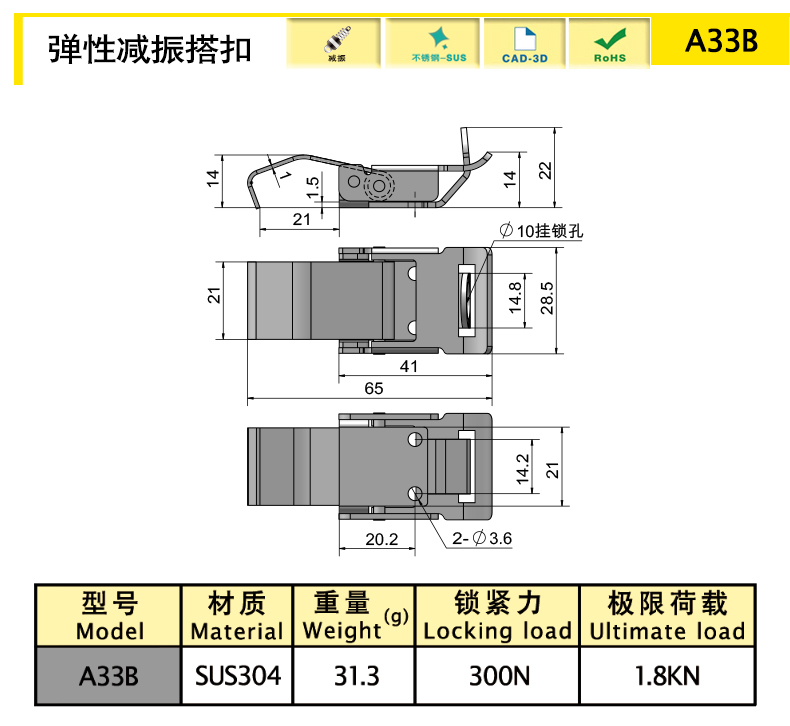

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A33B Damping,Lockable 66.1 SUS304 35 300 1800
characteristic

Spring-steel hook reduce vibration


Latch looks more simple without catch

Available services

With keyhole,padlock or lead seal is available.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
