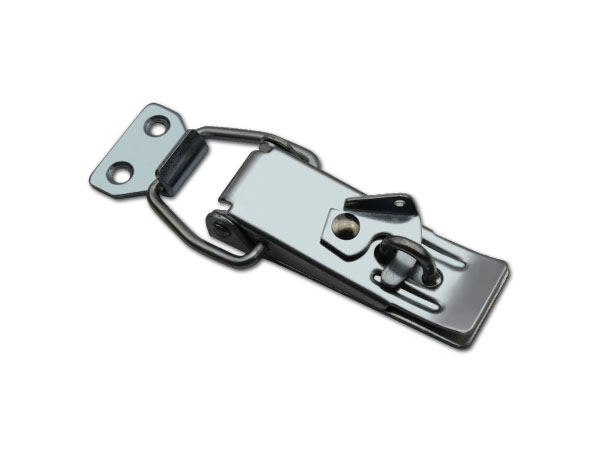

Safety Toggle Latch

A73

Safety Toggle Latch

Zinc plated

application:Medical equipment,locomotive,turnover box

catalogue CAD data

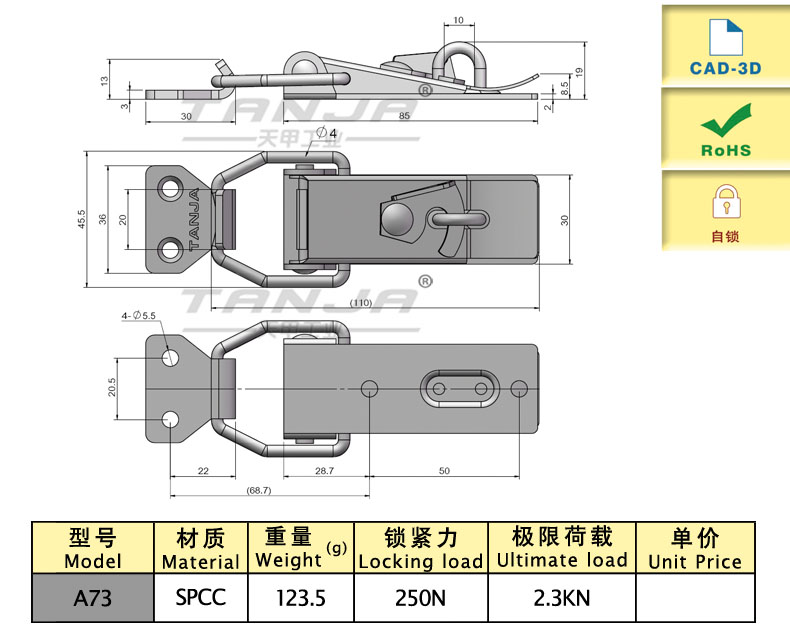

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A73 Self lock 129 SPCC 123.5 250 2300
characteristic
Safety bolt prevent latch accidental opening
Available services
Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
