Adjustable Toggle Latch

A104B

Adjustable Toggle Latch

Zinc plated / Polish

application:Vehicle /Packing case/Mechanical equipment /Oscillatory machine

catalogue CAD data

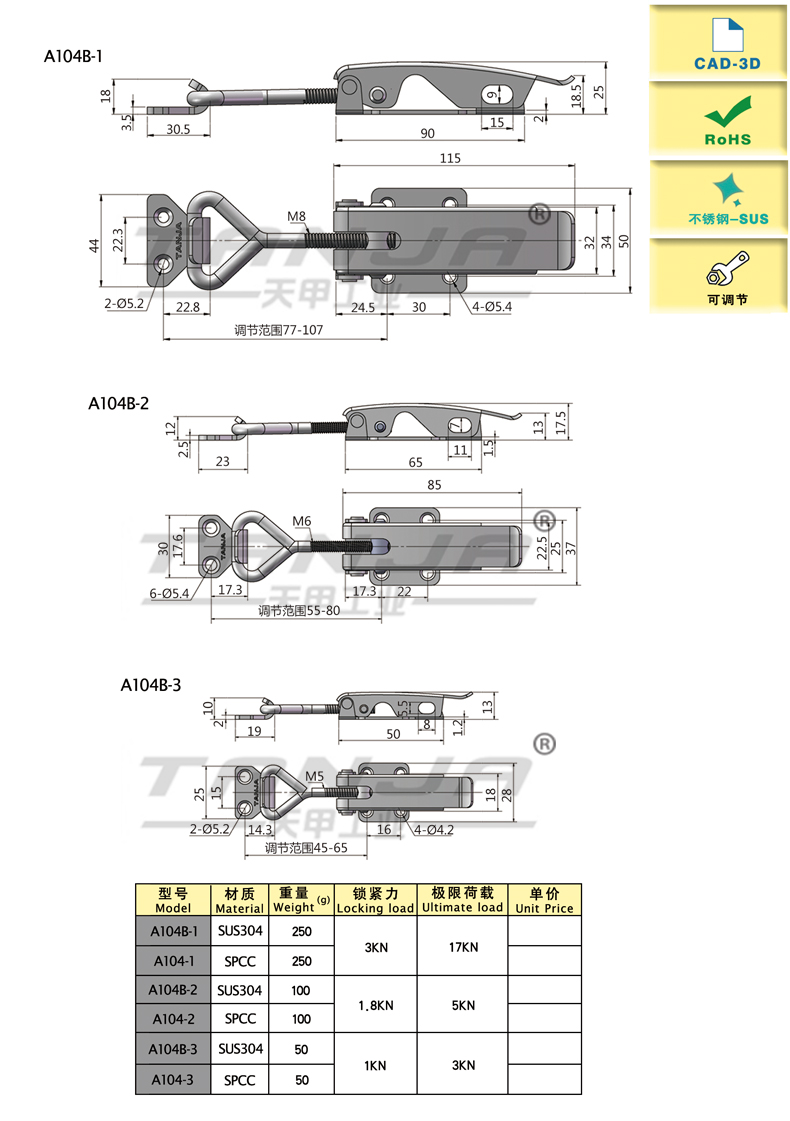

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A104B-1 Adjustable 212 SUS304 250 3000 17000
A104-1 Adjustable 212 SPCC 250 3000 17000
A104B-2 Adjustable 153 SUS304 100 1800 5000
A104-2 Adjustable 153 SPCC 100 1800 5000
A104B-3 Adjustable 120 SUS304 50 1000 3000
A104-3 Adjustable 120 SPCC 50 1000 3000
characteristic

U-shackle can adjust the mounting distance and tightness

Universal toggle latch, widely used in different fields

Available services

Suitable for heavy duty.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
