Safety Toggle Latch

A145

Safety Toggle Latch

Zinc plated

application:Vehicles,Medical equipment engineering machinery

catalogue CAD data

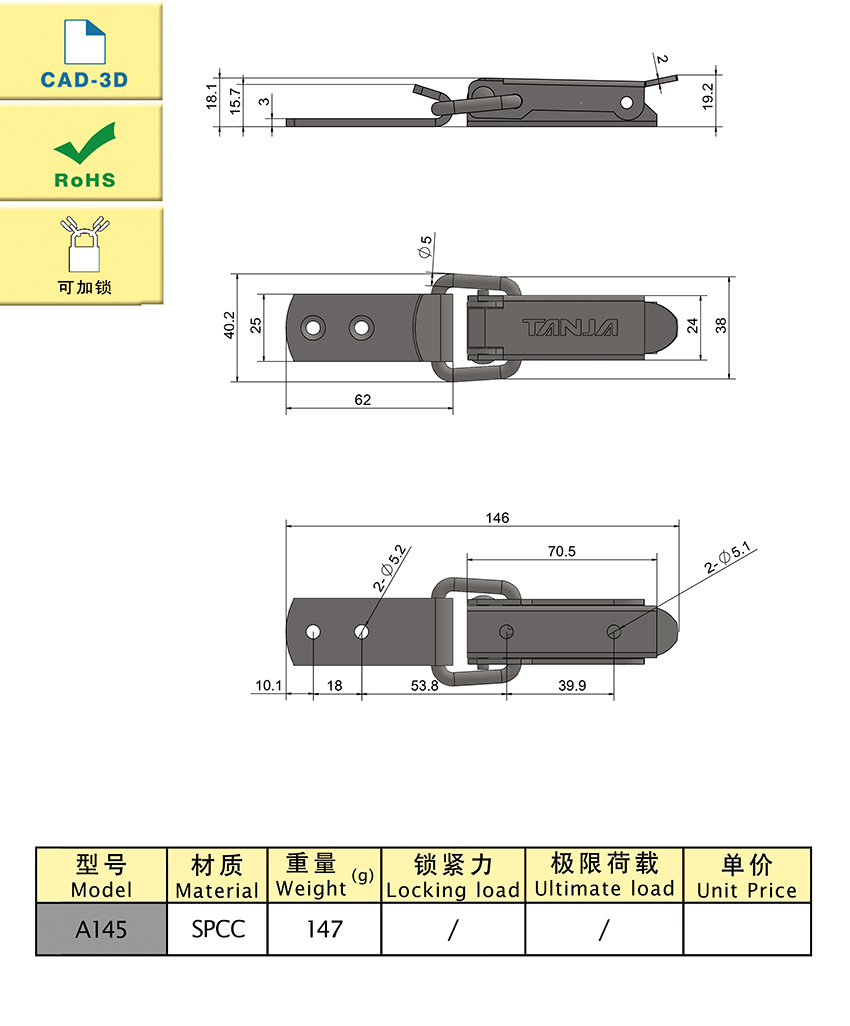

Product size diagram

Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A145 With lockhole 146 SPCC 147 1000 6000
characteristic
self-locking design, can prevent accidental opening,covenient and safe,Simple and elegant appearance
Available services

With self-locking design.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
