Safety&nbspToggle&nbspLatch

A21B-4

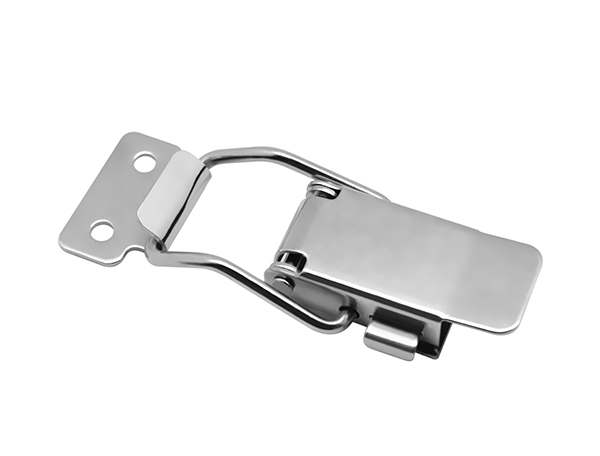

Safety Toggle Latch

Polished

application:Machinery/military equipment/vehicles

catalogue CAD data

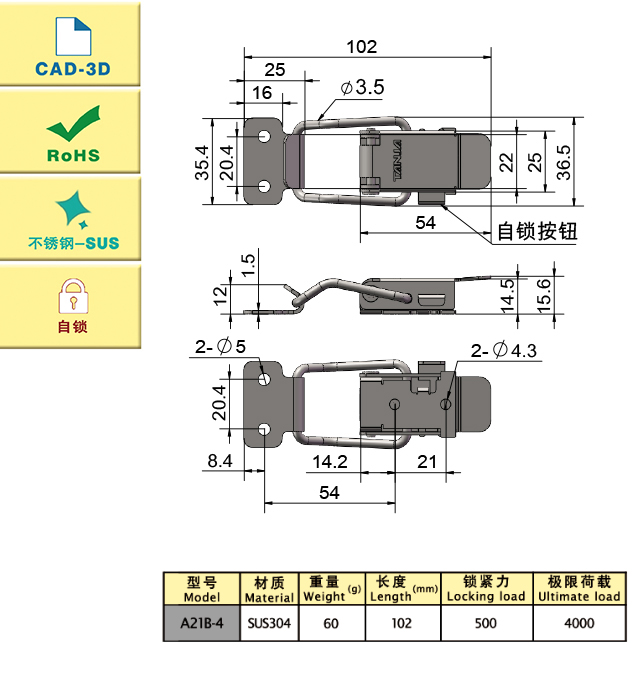

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A21B-4 Self lock 102 SUS304 60 500 4000
characteristic

The unique self-locking design on the side,prevents the buckle from bounce off during use,convenient to operate

Beautiful appearance, high strength

Available services

self-lock design.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
