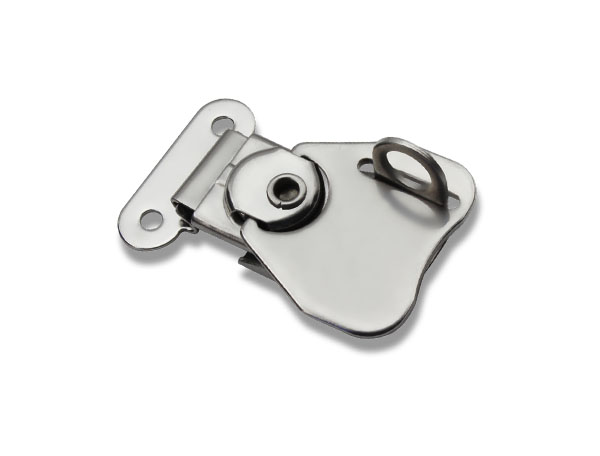

Rotatable Toggle Latch

A22B

Rotatable Toggle Latch

Polish

application:Packing case , Lamp cover, monitoring equipment

catalogue CAD data

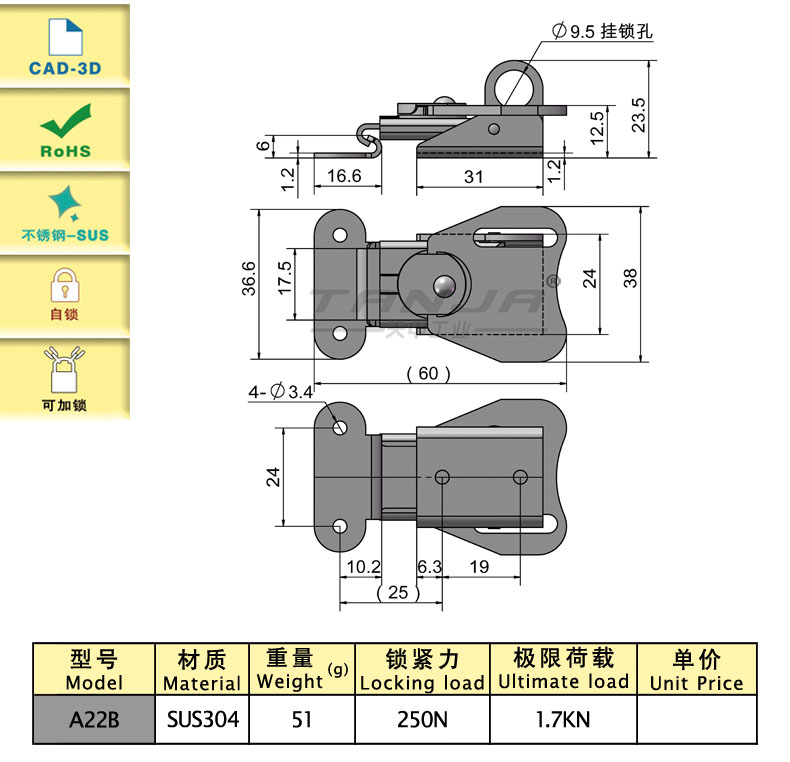

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A22B Self lock,With lockhole 60 SUS304 51 250 1700
characteristic

Center mechanism design make the latch self-locking ,prevent accidental opening

Available services

padlock is available,enhancing security.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
