October 9, 2026
Opening and closing a heavy or frequently used equipment cover can become inconvenient, especially when the cover needs to stay in a certain position during inspection, maintenance, or daily operation. A conventional hinge allows the cover to swing, but it does little to help support its weight. This is where a power assisted torque hinge can make a practical difference.
The Tanja K255 Power Assisted Torque Hinge is designed to make cover operation easier by combining spring assistance with adjustable torque. It helps reduce the effort needed to move a cover and allows it to stay at different positions within its opening and closing range. For equipment manufacturers looking to improve access and usability, it offers a straightforward solution without adding a complicated operating mechanism.
The K255 uses a spring-assisted mechanism to help users open and close a cover. Its assist torque is rated at 3.5–4.4 N·m, providing support during operation rather than leaving the user to handle the cover's weight alone.
This can be useful for equipment with access panels, protective covers, or hinged lids that are opened regularly. During maintenance, for example, an operator may need both hands to inspect components or carry out adjustments. A cover that is easier to move and can remain in position makes the job more manageable.
Another feature worth noting is the torque performance throughout the opening and closing range. According to the product specifications, the cover torque is close to 0 N·m within the specified range, excluding 0° and 100°. This helps make the cover easier to operate across much of its travel. The actual feel will depend on the cover's weight, dimensions, mounting arrangement, and overall equipment design.
Not every cover has the same size or weight, so a fixed torque setting may not suit every application. The K255 addresses this with an adjustable torque function. By rotating the locking nut, users can adjust the torque to better match the requirements of the installation.
This is particularly helpful for equipment manufacturers who work with different enclosure sizes or develop several models using a similar hinge design. Instead of relying on a single setting for every cover, the torque can be adjusted during installation to achieve a more suitable operating feel.
The adjustment also gives equipment designers more flexibility when refining a product. A cover should be easy to move, but it also needs to remain stable in the intended position. Proper adjustment helps balance these two requirements. The final setting should always be checked with the actual cover installed, rather than judged from the hinge alone.
One of the main benefits of the K255 is its ability to hold a position at any angle within its opening and closing range. Rather than allowing the cover to swing freely or requiring a separate support in every application, the hinge helps keep the cover where the operator needs it.
This can make a noticeable difference during inspection and servicing. An access cover that stays open at a convenient angle can provide better access to internal components and reduce the need for someone to hold it manually. For equipment used in production areas, workshops, or service environments, this is a practical improvement to everyday operation.
The positioning function can also help equipment designers create cleaner assemblies by reducing the need for additional holding components, depending on the application and the cover's design.

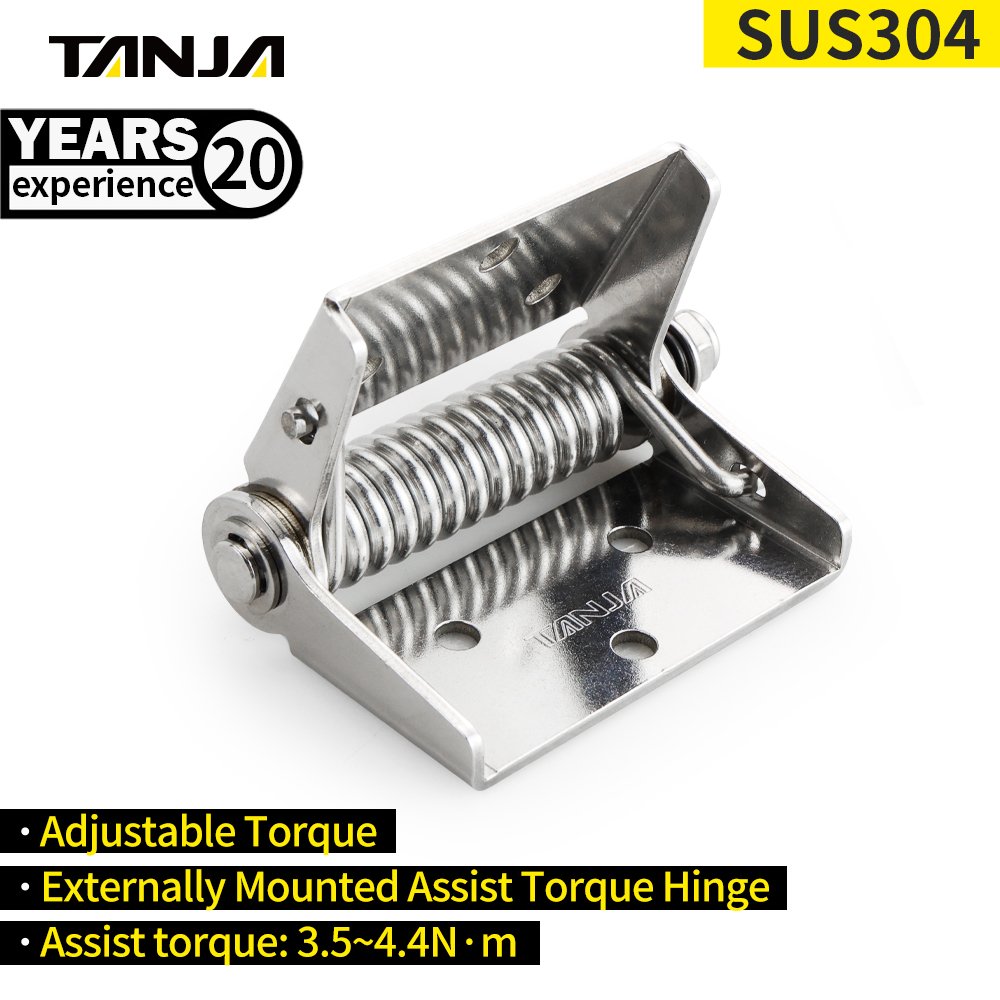

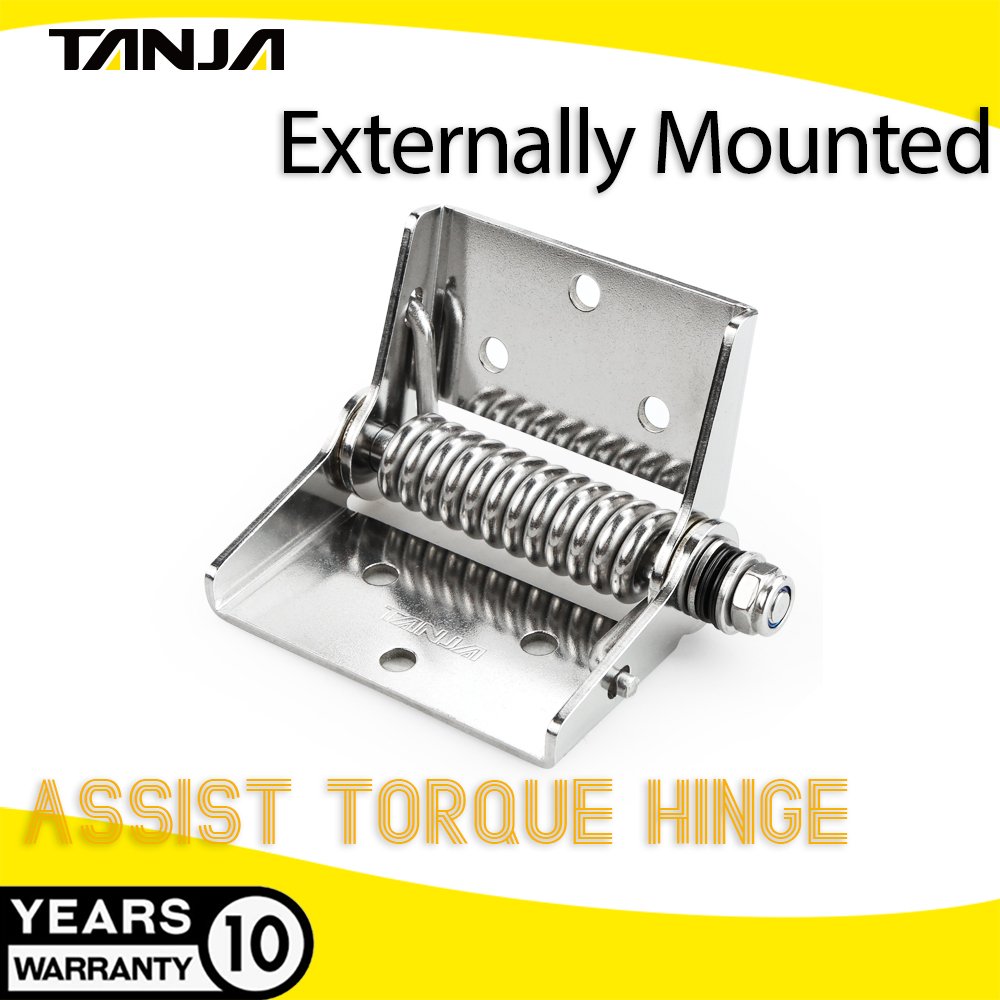

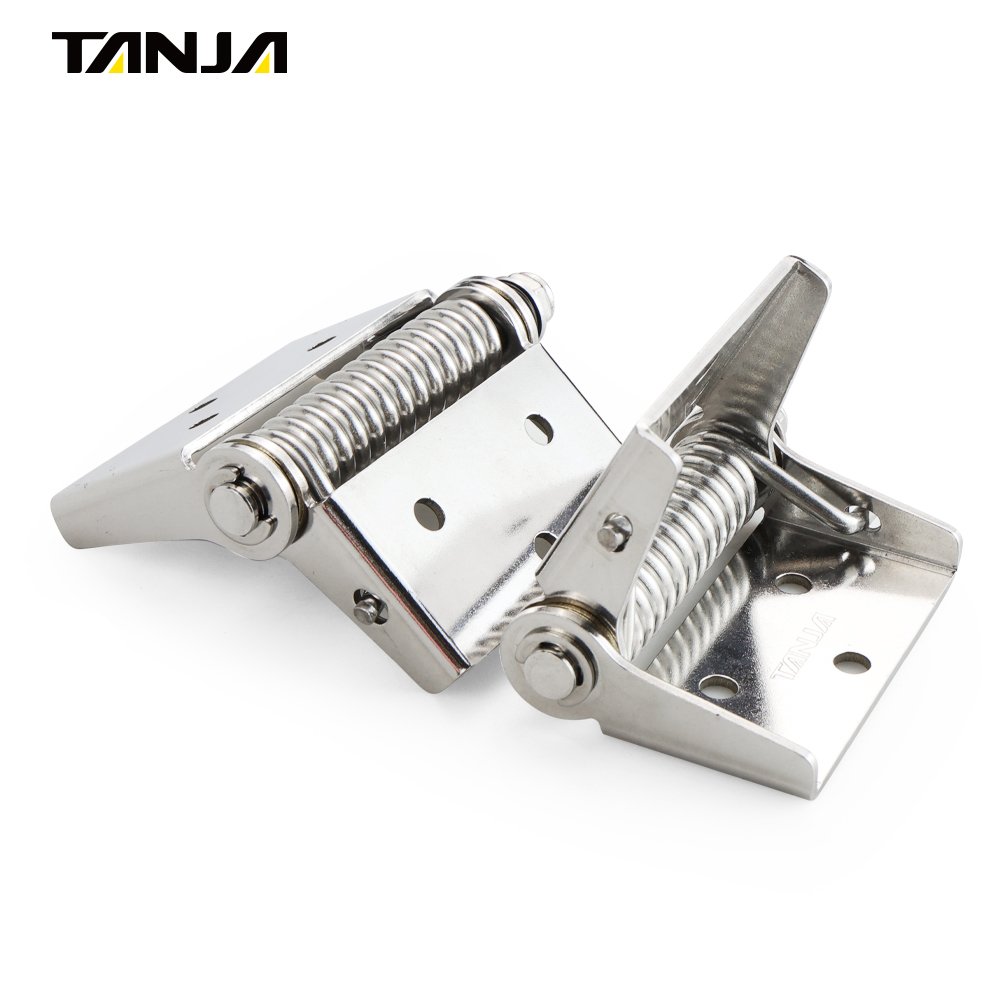

The K255 series includes two configurations: K255B-E external power assisted torque hinge and K255B-C built-in power assisted torque hinge.
The external version may suit designs where the hinge is mounted on the outside of the structure and can remain visible. The built-in version is intended for applications that call for an integrated mounting arrangement. The appropriate choice depends on the available installation space, the structure of the cover, appearance requirements, and how the equipment will be assembled.
For OEM projects, it is worth confirming the mounting layout and shaft alignment during the design stage. Checking these details early can help avoid installation problems and make the hinge easier to integrate into the finished equipment.

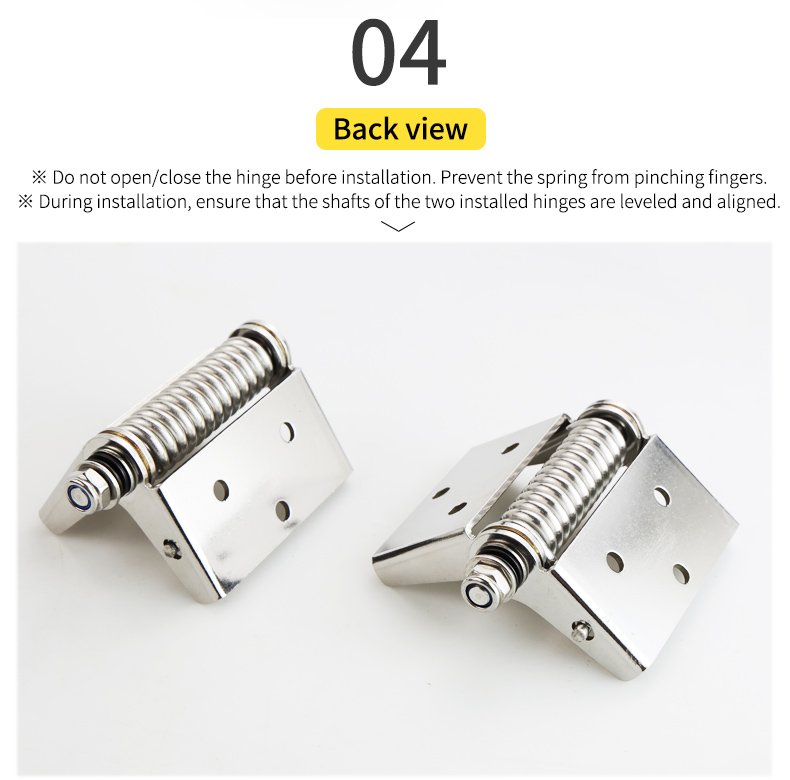

Correct installation is important for smooth operation and reliable positioning. Both hinge shafts should be level and properly aligned during installation. Misalignment may affect how the hinge moves and can place unnecessary stress on the mechanism.
There is also an important safety precaution: do not open or close the hinge before installation. The spring mechanism may move unexpectedly and pinch fingers. Handle the hinge carefully and follow the relevant installation instructions throughout the process.
After installation, check the cover's movement and holding performance with the complete assembly in place. If adjustment is needed, rotate the locking nut as specified and test the cover again. The goal is to achieve controlled movement and suitable positioning for the actual equipment, rather than simply obtaining the highest possible resistance.
The Tanja K255 Power Assisted Torque Hinge combines spring assistance, adjustable torque, and angle positioning in one compact component. With external and built-in mounting options available, it gives equipment designers flexibility when planning access covers and hinged panels.
For manufacturers of industrial enclosures, machinery, and other equipment with movable covers, the K255 offers a practical way to make routine opening, closing, and maintenance access easier to manage. Selecting the right configuration and setting the torque to match the finished cover are key to getting the best result.
When specifying a K255 hinge for an OEM project, confirm the required mounting type, cover dimensions, operating angle, and installation conditions before finalizing the design. A well-matched hinge can make a small but meaningful difference to how an equipment cover works every day.
