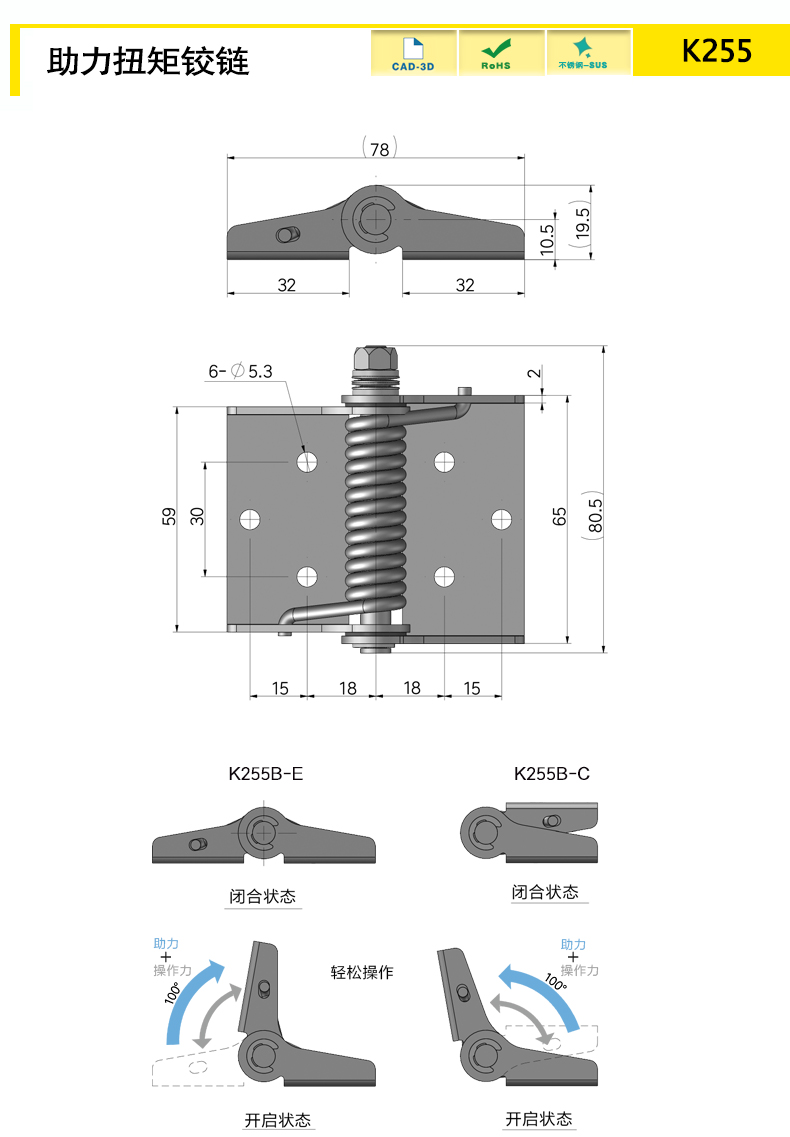

TANJA K255 Power-Assisted Torque Hinge

Using spring assistance, the cover plate can be easily operated. Assist torque 3.5~4.4N. m

Adjustable torque, which can be adjusted by rotating the locking nut, convenient to use

Stop at any angle within the opening and closing range

The torque of the cover plate within the opening and closing range (excluding 0 ° and 100 °) is close to 0N · m, which can assist in easy operation

Do not open/close the hinge before installation. Prevent the spring from gripping the fingers

During installation, ensure that both hinge shafts are level and aligned

Assist Torque Hinge

It can be positioned and stopped at any angle within the opening and closing range

Internal/External Mount Assist Torque Hinge
