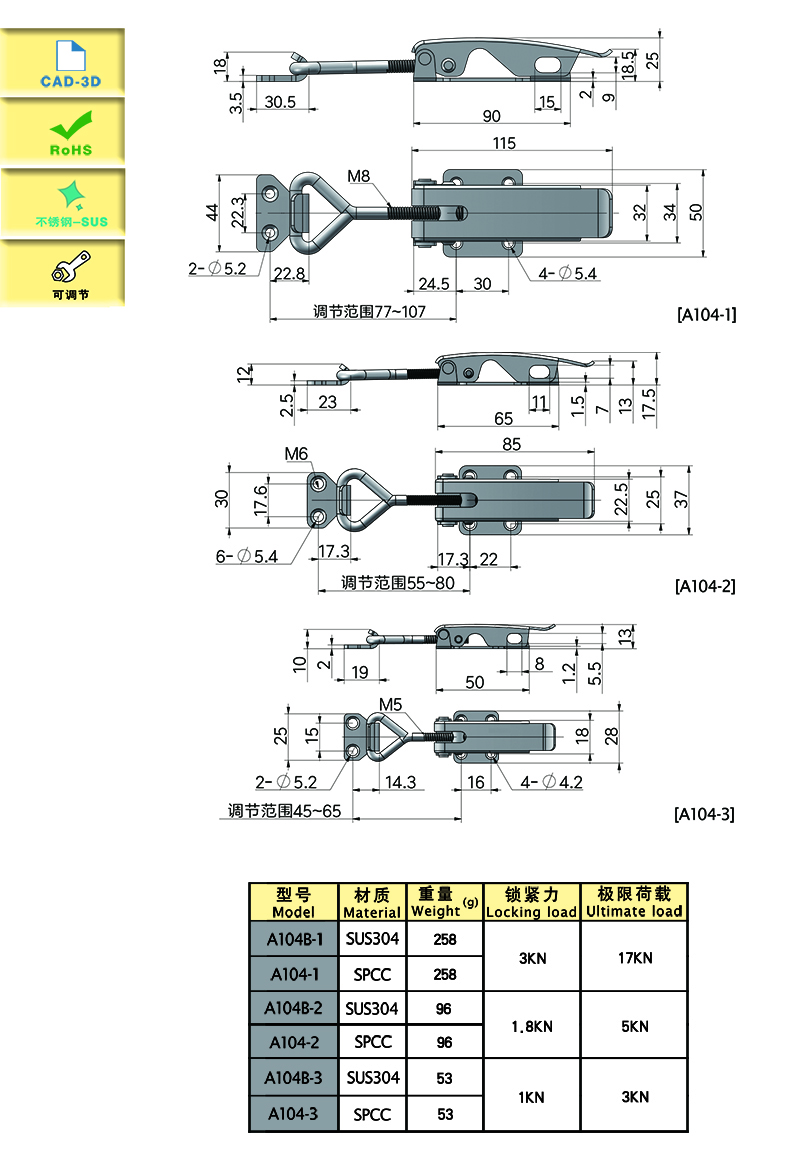

| model | function | Length (mm) | material quality | Weight (g) | Locking force (N) | 3D |
| A104B-1 | adjustable | 212 | sus304 | 251.51 | 3000 | Download |
| A104-1 | adjustable | 212 | spcc | 258.4 | 3000 | Download |
| A104B-2 | adjustable | 153 | sus304 | 96.07 | 1800 | Download |
| A104-2 | adjustable | 153 | spcc | 96.07 | 1800 | Download |
| A104B-3 | adjustable | 120 | sus304 | 53.03 | 1000 | Download |
| A104-3 | adjustable | 120 | spcc | 53.03 | 1000 | Download |
The screw can be adjusted to change the installation distance and locking force
Universal buckle, widely used
Vibration damping self-locking toggle latch
