| model | function | Length (mm) | material quality | Weight (g) | Locking force (N) | 3D |
| A109B-1 | concealed,self lock,damping,adjustable | 150.4 | sus304 | 322.59 | 250 | Download |
| A109B-2 | concealed,self lock,damping,adjustable | 125.3 | sus304 | 179.71 | 200 | Download |
| A109B-3 | concealed,self lock,damping,adjustable | 100.4 | sus304 | 91.08 | 100 | Download |
Built in spring with vibration damping function, can maintain elastic preloading on the connecting body.
The unique safety pin can achieve self-locking function, with reliable safety, and the buckle will not loosen due to vibration
With lock hole, can be equipped with lock or lead seal

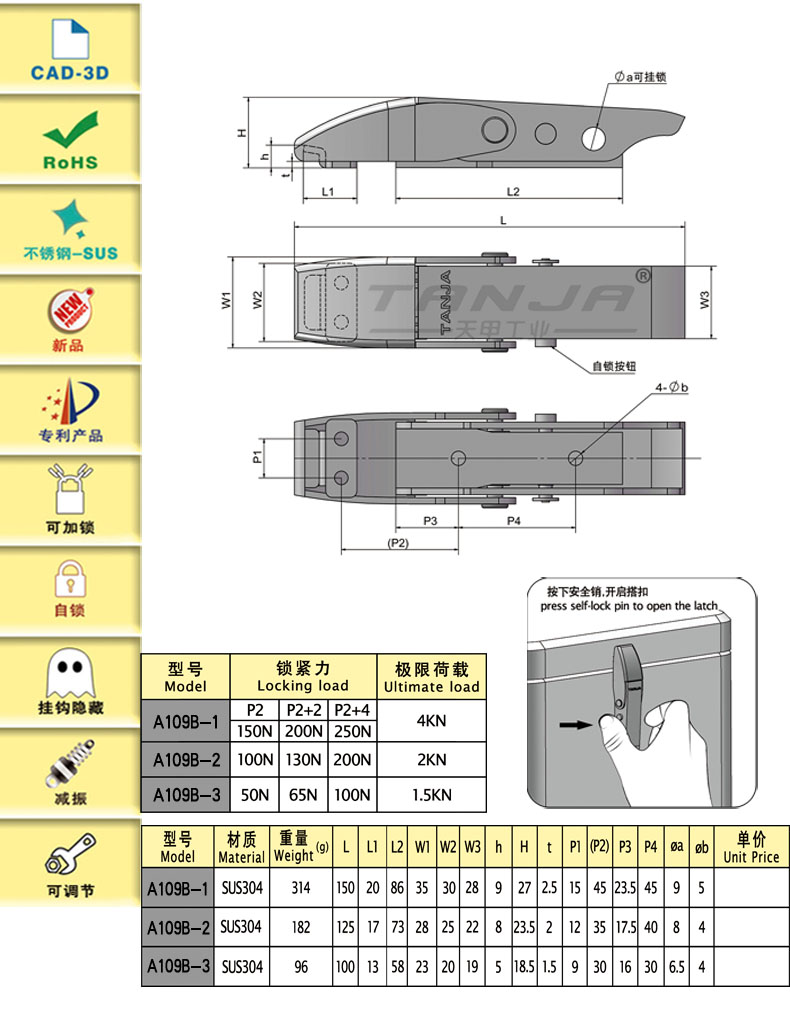

Internal toggle latch type vibration damping toggle latch
