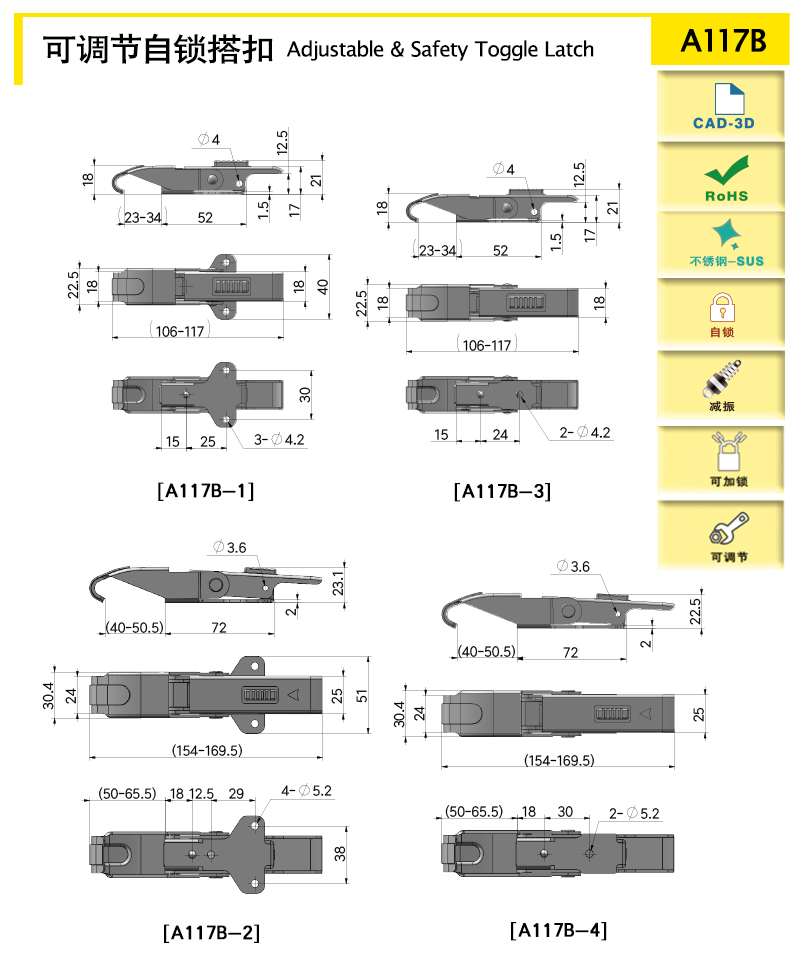

| model | function | Length (mm) | material quality | Weight (g) | Locking force (N) | Ultimate load (N) | 3D |
| A117B-1 | adjustable,self lock,damping,with lock | 106-117 | sus304 | 83.01 | 500 | 1500 | Download |
| A117B-2 | adjustable,self lock,damping,with lock | 154-169.5 | sus304 | 188.61 | 800 | 2000 | Download |
| A117B-3 | adjustable,self lock,damping,with lock | 106-117 | sus304 | 79.21 | 500 | 1500 | Download |
| A117B-4 | adjustable,self lock,damping,with lock | 154-169.5 | sus304 | 184.23 | 800 | 2000 | Download |
With side holes, can be equipped with locks or lead seals to prevent loosening
The self-locking device can achieve self-locking function and has reliable safety,
The buckle will not loosen due to vibration
