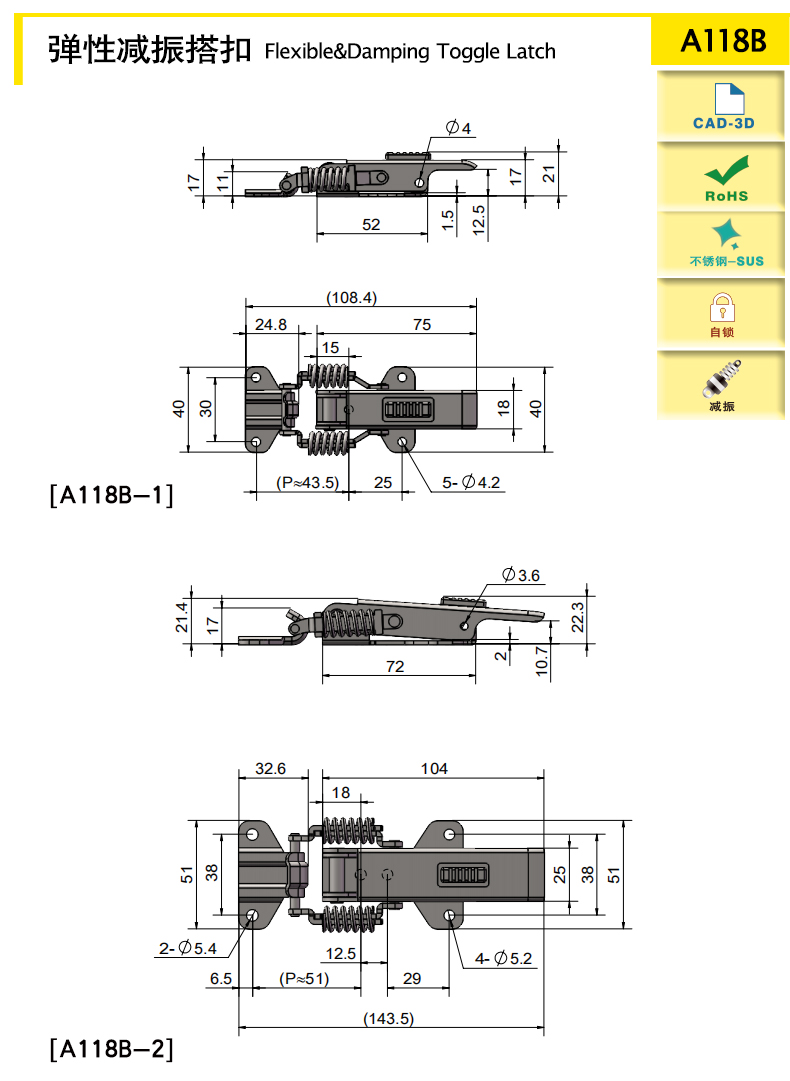

| model | function | Length (mm) | material quality | Weight (g) | Locking force (N) | Ultimate load (N) | 3D |
| A118B-1 | damping,self lock | 108 | sus304 | 89.01 | 100/200/350 | 2800 | Download |
| A118B-2 | damping,self lock | 143.5 | sus304 | 174.81 | 250/340/400 | 3500 | Download |
| A118B-3 | damping,self lock | 108.4 | sus304 | 190.12 | 100/200/350 | 2800 | Download |
| A118B-4 | damping,self lock | 143.5 | sus304 | 190.12 | 250/340/400 | 3500 | Download |
With side holes, can be equipped with locks or lead seals to prevent loosening
The self-locking device can achieve self-locking function, with reliable safety, and the buckle will not loosen due to vibration
Compression springs have elastic preloading and shock absorption functions
Elastic damping toggle latch
