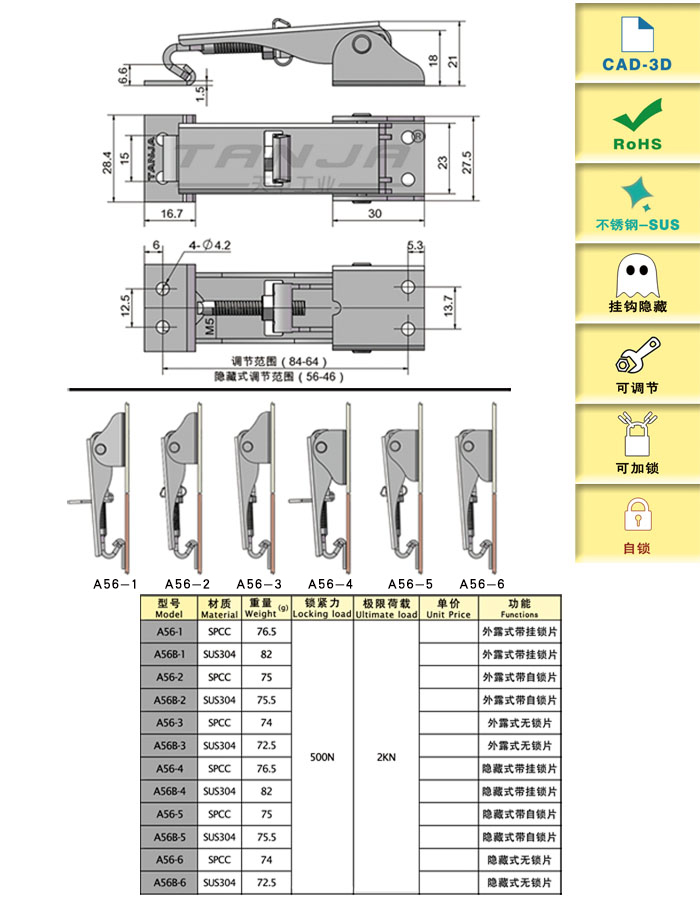

| model | function | Length (mm) | material quality | Weight (g) | Locking force (N) | 3D |
| A56-5 | concealed,adjustable,self lock | 82.2 | spcc | 75.19 | 500 | Download |
| A56B-5 | concealed,adjustable,self lock | 82.2 | sus304 | 72.61 | 500 | Download |
| A56-6 | concealed,adjustable | 82.6 | spcc | 74.08 | 500 | Download |
| A56B-6 | concealed,adjustable | 82.6 | sus304 | 73 | 500 | Download |
| A56-1 | concealed,adjustable,with lock | 81.3 | spcc | 76.93 | 500 | Download |
| A56B-1 | concealed,adjustable,with lock | 81.3 | sus304 | 75.01 | 500 | Download |
| A56-2 | concealed,adjustable,self lock | 81.5 | spcc | 75.19 | 500 | Download |
| A56B-2 | concealed,adjustable,self lock | 81.5 | sus304 | 72.41 | 500 | Download |
| A56-3 | concealed,adjustable | 81.6 | spcc | 74.08 | 500 | Download |
| A56B-3 | concealed,adjustable | 81.6 | sus304 | 73 | 500 | Download |
| A56-4 | concealed,adjustable,with lock | 81.4 | spcc | 76.93 | 500 | Download |
| A56B-4 | concealed,adjustable,with lock | 81.4 | sus304 | 74.21 | 500 | Download |
The internal buckle mechanism can hide all installation hardware and locking functions under the handle, and the lower eccentric mechanism can achieve firm off plane locking.
A56-1 and A56-4 have a padlock structure
A56-2 and A56-5 have self-locking structures to prevent accidental opening
