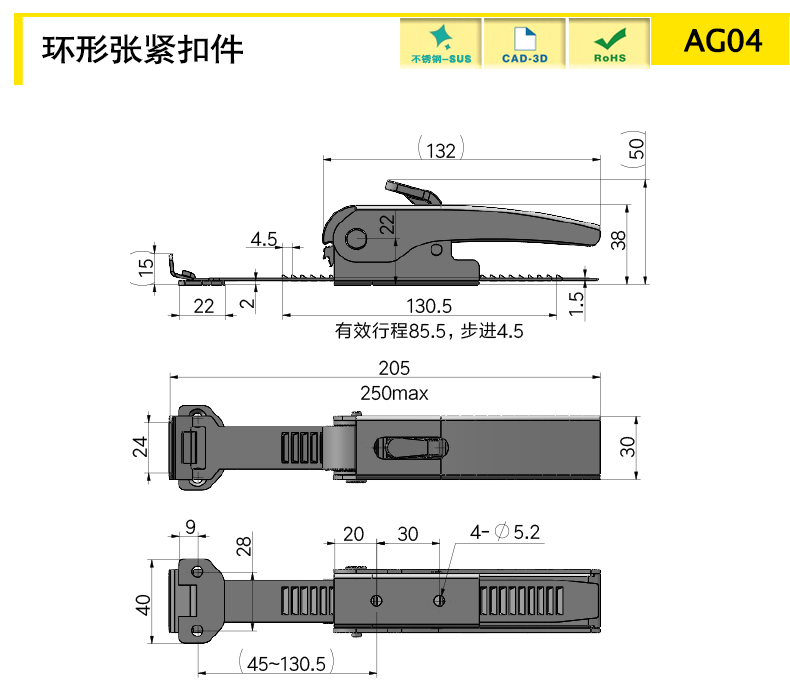

| model | function | Length (mm) | material quality | Weight (g) | Locking force (N) | Ultimate load (N) | 3D |
| AG04B | self lock,adjustable | 205 | sus304 | 319.7 | 1000 | 3000 | Download |
1. Adjustable tension type: minimum single tension of 4.5mm, maximum tension of 9mm
2. Adjustable stroke of 85.5mm, suitable for larger locking distances
3. Removable rack belt: more flexible to use
Ring tensioning fastener
