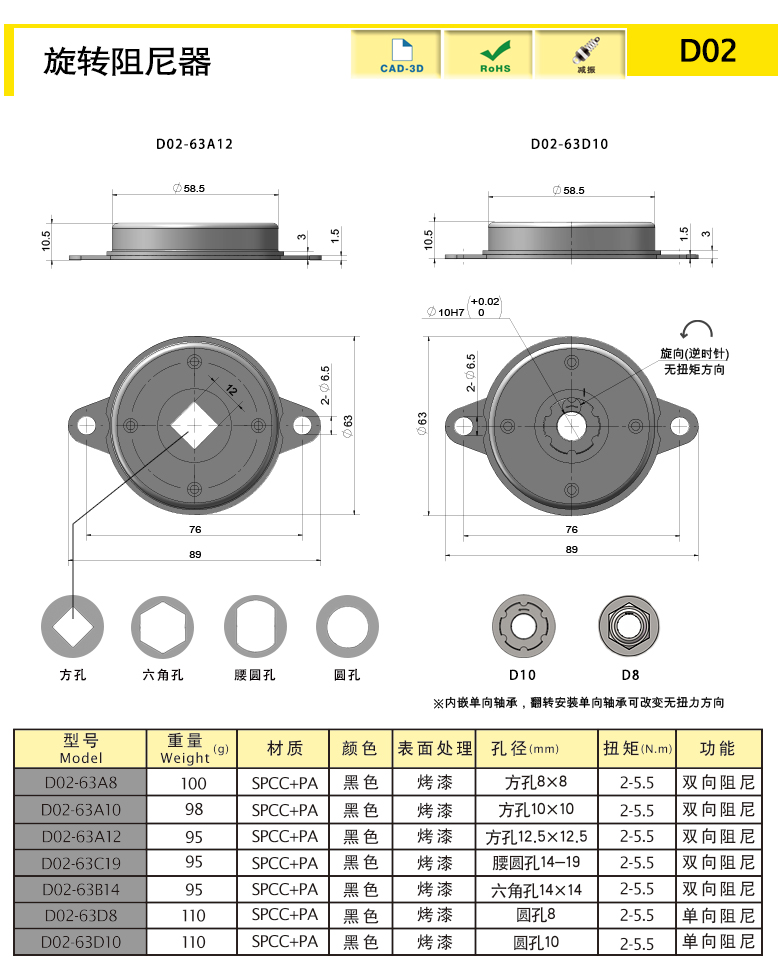

| model | Weight (g) | colour | material quality | function | 3D |
| D02-63A8 | 101.31 | black | spcc+pa | bidirectional damping | Download |
| D02-63A10 | 94.81 | black | spcc+pa | bidirectional damping | Download |
| D02-63A12 | 95.01 | black | spcc+pa | bidirectional damping | Download |
| D02-63C19 | 95.01 | black | spcc+pa | bidirectional damping | Download |
| D02-63B14 | 95.01 | black | spcc+pa | bidirectional damping | Download |
| D02-63D8 | 110.01 | black | spcc+pa | unidirectional damping | Download |
| D02-63D10 | 110.01 | black | spcc+pa | unidirectional damping | Download |
Rotating speed<50rpm
Rotation rate ≤ 12c/min
Operating temperature -10/50 ℃
Shell material SPCC (cold-rolled carbon steel plate)
Rotor material PA (nylon)
Rotary Damper
