| model | function | material quality | With key | surface treatment | Weight (g) | H | 3D |
| EC14B-1DK | cylindrical lock | sus304 | optional | polishing | 94.21 | 18 | Download |
| EC14B-2DK | cylindrical lock | sus304 | optional | polishing | 95.71 | 23 | Download |
| EC14B-3DK | cylindrical lock | sus304 | optional | polishing | 95.91 | 28 | Download |
| EC14B-1VK | cylindrical lock | sus304 | optional | polishing | 98.71 | 18 | Download |
| EC14B-2VK | cylindrical lock | sus304 | optional | polishing | 96.31 | 23 | Download |
| EC14B-3VK | cylindrical lock | sus304 | optional | polishing | 96.51 | 28 | Download |
| EC14B-1SK | cylindrical lock | sus304 | optional | polishing | 96.01 | 18 | Download |
| EC14B-2SK | cylindrical lock | sus304 | optional | polishing | 96.51 | 23 | Download |
| EC14B-3SK | cylindrical lock | sus304 | optional | polishing | 98.11 | 28 | Download |
Applicable door panel thickness: 1-5mm
Structural function: Rotate the angle to achieve opening or closing

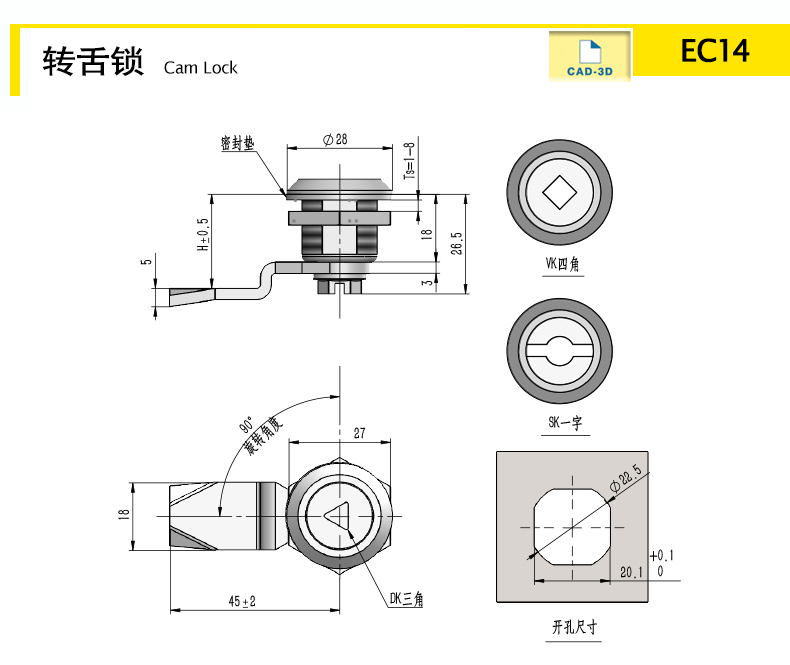

Installation: Determine the size based on the actual hole spacing specifications of the product; Fix with rivets, screws, spot welding, and other methods
Tongue lock
