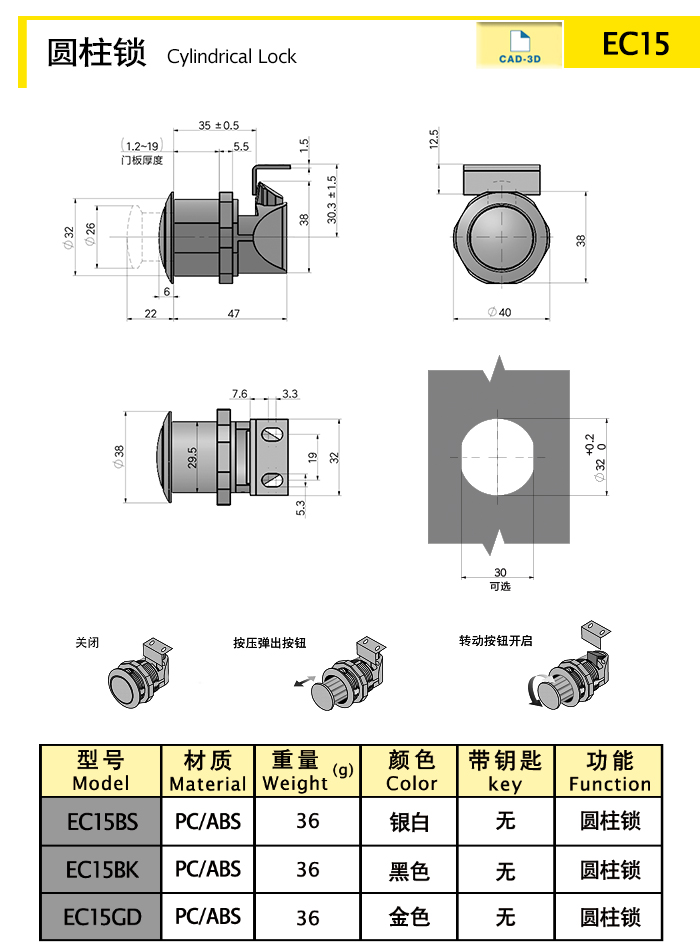

| model | function | material quality | colour | With key | surface treatment | Weight (g) | 3D |
| EC15-SR | cylindrical lock | pc/abs | silver white | none | chromium plating | 38.81 | Download |
| EC15-BK | cylindrical lock | pc/abs | black | none | chromium plating | 37.61 | Download |
| EC15-GD | cylindrical lock | pc/abs | gold | none | chromium plating | 36.01 | Download |
Applicable door panel thickness: 1.2-19mm
Single circular hole installation
Embedded pop-up button
Corrosion resistant materials
