| model | function | material quality | Length (mm) | With key | surface treatment | Weight (g) | 3D |
| EF05 | flat lock | zinc alloy | 150 | yes | chromium plating | 312.81 | Download |
Material: Zinc alloy lock shell, lock back, shaft, lock core
Surface treatment: sand chrome plating
Structural function: The handle opens upwards, driving the lock to rotate 90 ° to achieve opening.
Applicable door panel thickness: 1-2mm

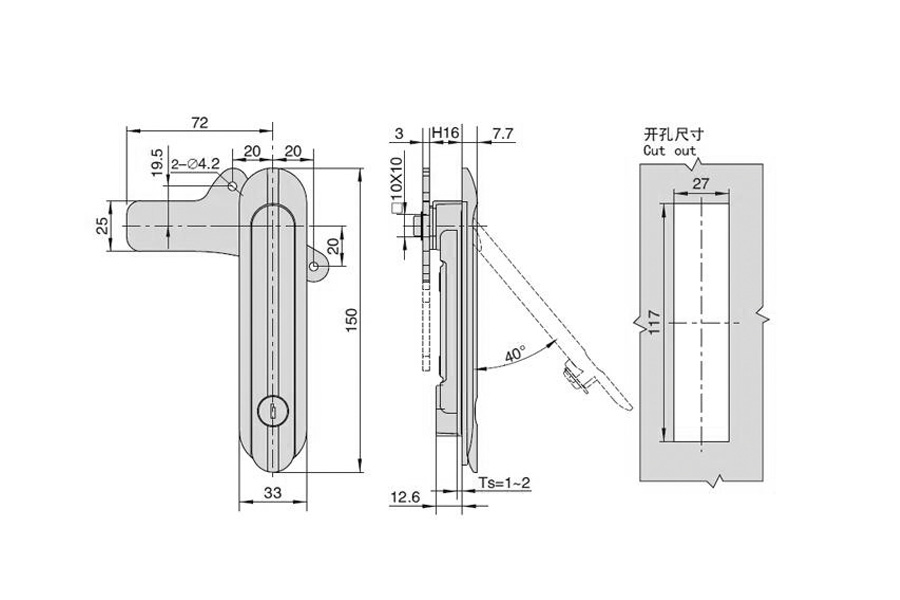

Note: Lock plate opening 10X10
