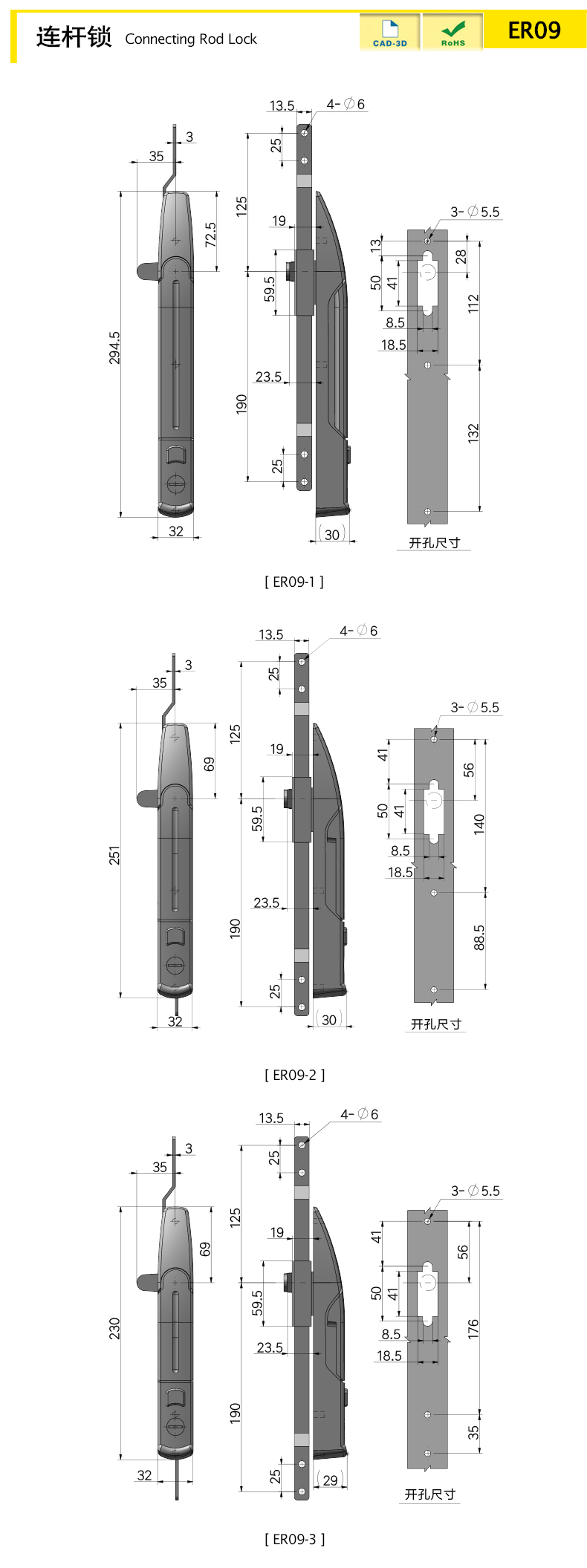

| model | function | material quality | Length (mm) | colour | With key | surface treatment | Weight (g) | 3D |
| ER09-1 | connecting rod lock | kirsite | 295 | white | have | spray | 748.84 | Download |
| ER09-2 | connecting rod lock | kirsite | 251 | white | have | spray | 675.51 | Download |
| ER09-3 | connecting rod lock | kirsite | 230 | white | have | spray | 642.91 | Download |
After inserting the key to unlock, press the button and the handle will automatically pop up, quickly unlocking
The upper and lower connecting rods work together with the locking tongue, forming three force points on the cabinet door of the chassis cabinet. The locking effect is reliable, and the door panel is not easy to shake
