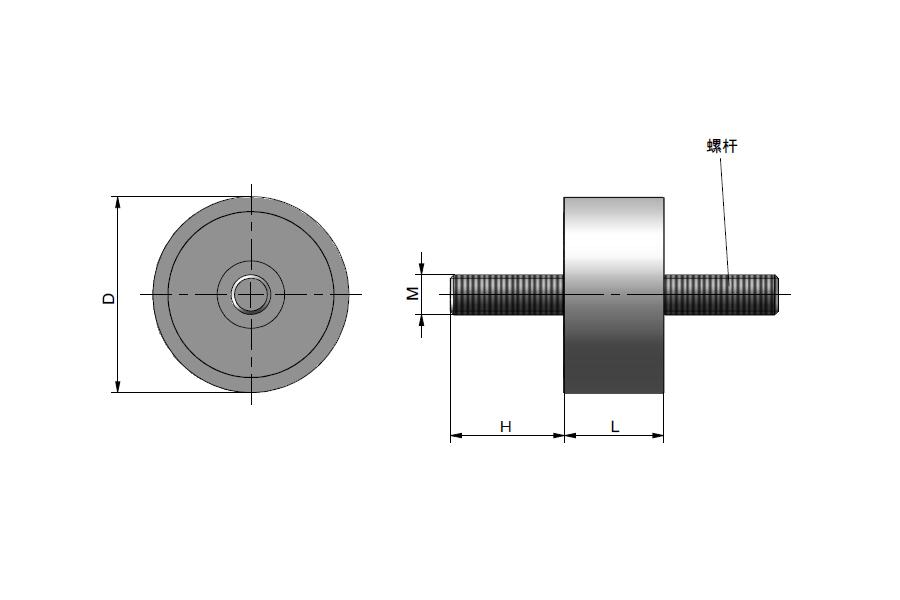

| model | material quality | Diameter D | Length L | Height H | M | Optimal compression amount (mm) | 3D |
| J01-40-30 | natural rubber | 40 | 30 | 23 | m8 | 2.5 | Download |
| J01-100-75 | natural rubber | 100 | 75 | 41 | m16 | 4 | Download |
| J01-100-55 | natural rubber | 100 | 55 | 41 | m16 | 3.5 | Download |
| J01-100-40 | natural rubber | 100 | 40 | 41 | m16 | 3 | Download |
| J01-75-55 | natural rubber | 75 | 55 | 37 | m12 | 3.5 | Download |
| J01-75-40 | natural rubber | 75 | 40 | 37 | m12 | 3 | Download |
| J01-70-45 | natural rubber | 70 | 45 | 27 | m12 | 3 | Download |
| J01-60-40 | natural rubber | 60 | 40 | 28 | m12 | 2.5 | Download |
| J01-60-30 | natural rubber | 60 | 30 | 28 | m12 | 2.5 | Download |
| J01-50-50 | natural rubber | 50 | 50 | 28 | m10 | 3 | Download |
| J01-50-40 | natural rubber | 50 | 40 | 28 | m10 | 3 | Download |
| J01-50-30 | natural rubber | 50 | 30 | 28 | m10 | 2.5 | Download |
Standard shock absorbers are commonly used for fixing or elastic fastening equipment.
Suitable for various applications, especially machines with elastic suspension and vibration isolation, as well as various machinery such as small motors, water pumps, fans, dryers, electric motors, measuring equipment, etc.
Easy to install, with complete specifications, it can meet various needs in outer diameter sizes ranging from 8mm to 150mm.
