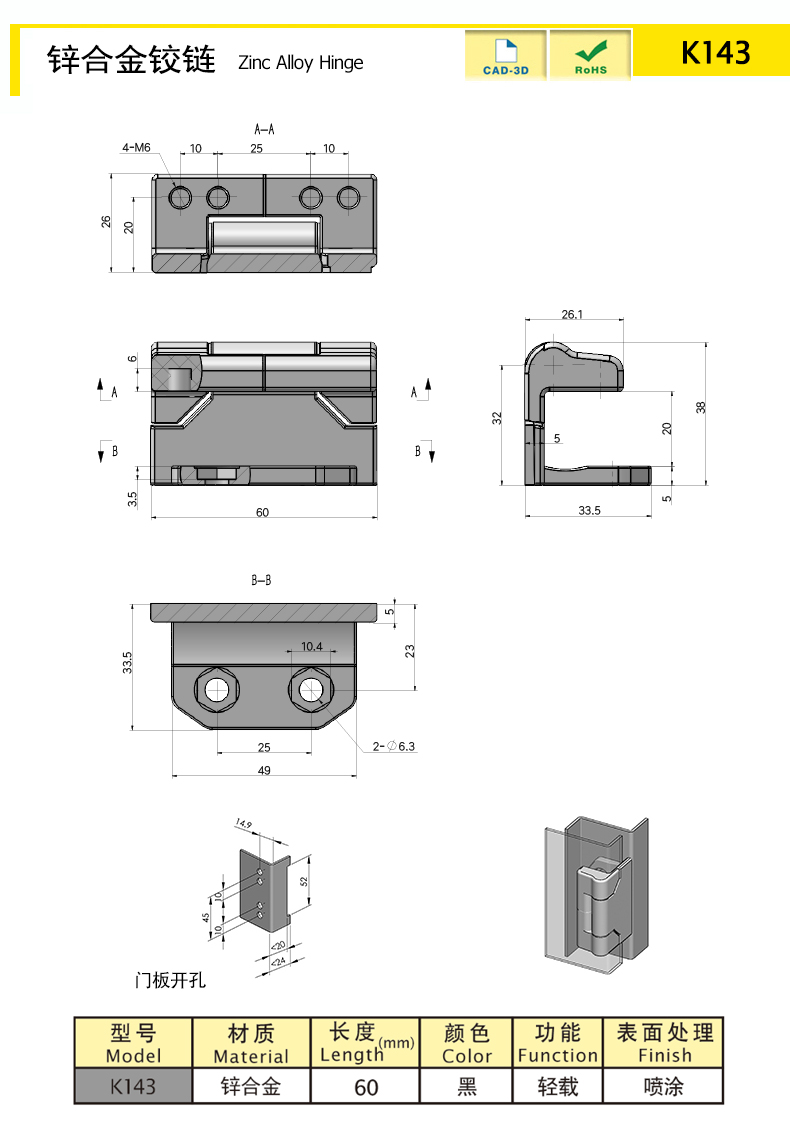

| model | material quality | Length (mm) | colour | Weight (g) | function | 3D |
| K143 | zinc alloy | 60 | black | 180.61 | light load | Download |
Material: Zinc alloy hinge, copper gasket, carbon steel pin shaft
Maximum opening and closing angle: 180 °
Maximum static load
Radial load: 980N
Axial load: 630N
