| model | material quality | Length (mm) | colour | Weight (g) | function | 3D |
| K185B-1.0-A | sus304 | 25 | silvery white | 11.51 | light load | Download |
| K185B-1.0-B | sus304 | 25 | silvery white | 1 | light load | Download |
| K185B-1.5-A | sus304 | 38 | silvery white | 17.51 | light load | Download |
| K185B-1.5-B | sus304 | 38 | silvery white | 17.71 | light load | Download |
| K185B-2.0-1-A | sus304 | 50 | silvery white | 26.71 | light load | Download |
| K185B-2.0-1-B | sus304 | 50 | silvery white | 26.31 | light load | Download |
| K185B-2.0-2-A | sus304 | 50 | silvery white | 53.1 | light load | Download |
| K185B-2.0-3-A | sus304 | 51 | silvery white | 63.31 | light load | Download |
| K185B-2.5-1-A | sus304 | 60 | silvery white | 43.41 | light load | Download |
| K185B-2.5-1-B | sus304 | 60 | silvery white | 43.91 | light load | Download |
| K185B-2.5-2-A | sus304 | 60 | silvery white | 47.61 | light load | Download |
| K185B-3.0-A | sus304 | 75 | silvery white | 78.11 | light load | Download |
Stainless steel spring design, capable of automatic rebound and reset, saving time and effort
Surface vibration polishing, anti-corrosion and wear-resistant
Rich specifications, including 1.0 inch, 1.5 inch, 2.0 inch, 2.5 inch, 3.0 inch, 3.5 inch, 4.0 inch, to meet various occasions
remarks:

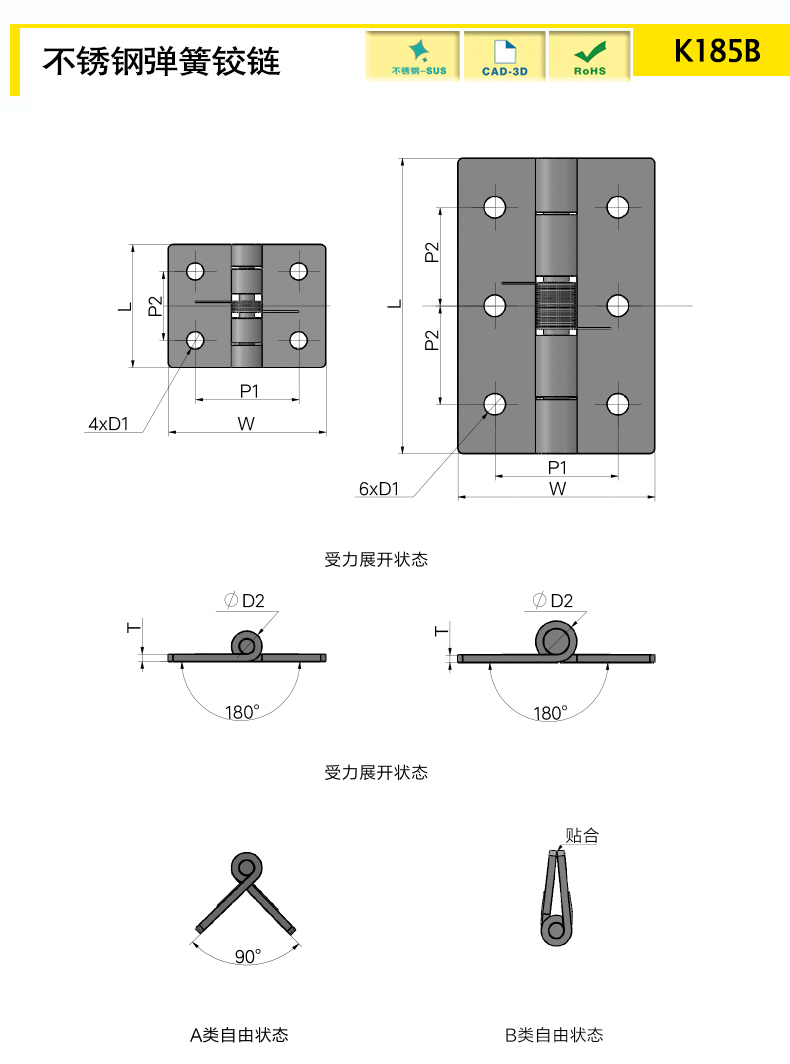

① Categories A and B only have opposite styles and can be interchanged during installation (at least two products of the same model must be used together). Users can choose according to their needs
② 2.5-1 series, 3.0 series, 4.0 series products have 3 mounting holes on one side, while other products have 2
