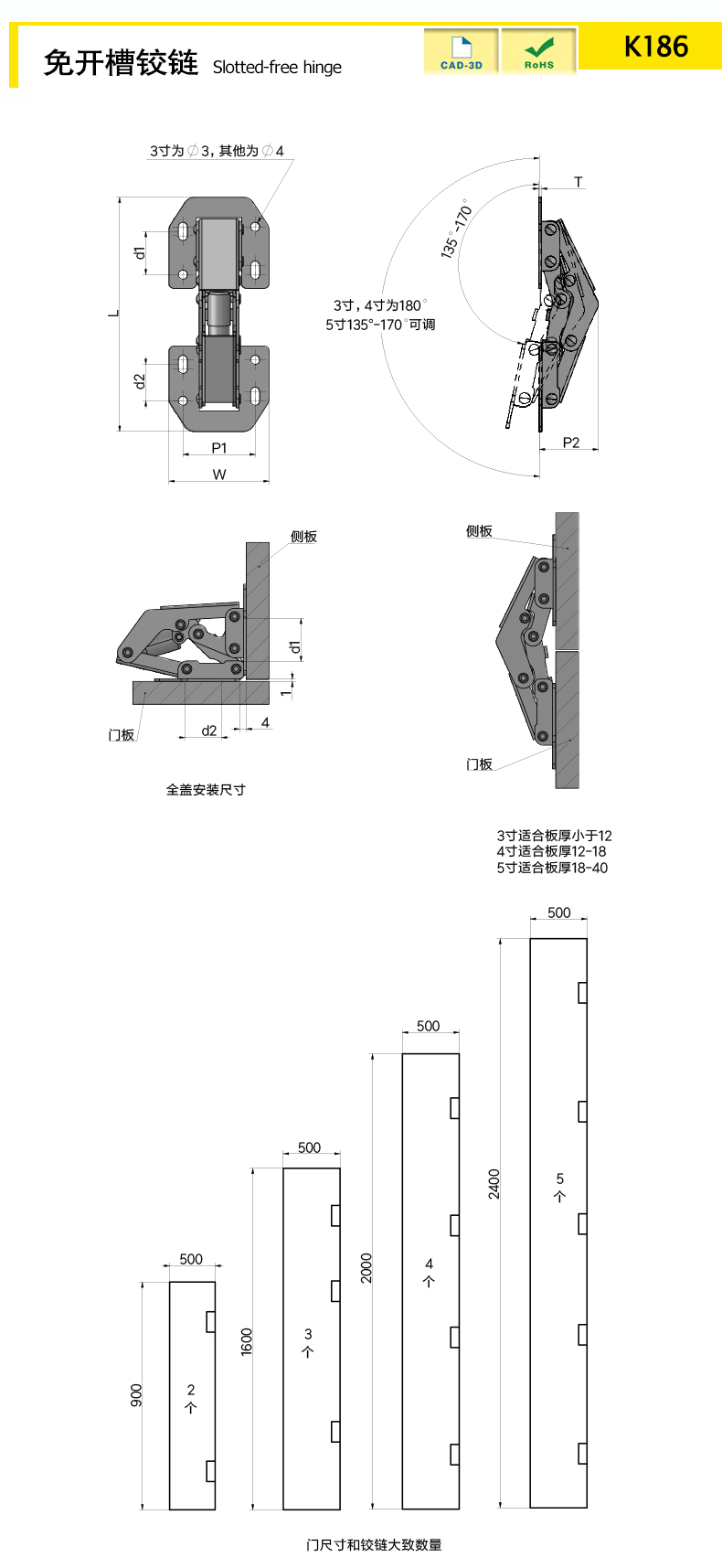

| model | material quality | Length (mm) | Weight (g) | function | 3D |
| K186-3 | spcc | 77 | 33.01 | no slotting required | Download |
| K186-4 | spcc | 105 | 73.71 | no slotting required | Download |
| K186-4-N | spcc | 113 | 96.21 | no slotting required | Download |
| K186-5 | spcc | 158 | 238.01 | no slotting required | Download |
| K186-5-N | spcc | 158 | 255.82 | no slotting required | Download |
The door panel does not require slotting, is fixed with screws, and is easy to install
Compatible with multiple installation methods, can be used with full cover, half cover, or no cover
Complete variety, suitable for various board thicknesses
Smooth opening and closing, silent buffering without abnormal noise
Note: Products with N model have damping and buffering when closed, and other products have fastening force when closed. When manually adjusting the closure, be careful not to squeeze your hands
