| model | material quality | Length (mm) | colour | Weight (g) | function | 3D |
| K207-1-1-BK | pom | 52 | black | 37.41 | fixed torque,angle positioning | Download |
| K207-1-2-BK | pom | 52 | black | 40 | fixed torque,angle positioning | Download |
| K207-1-3-BK | pom | 52 | black | 39.41 | fixed torque,angle positioning | Download |
| K207-2-1-BK | pom | 52 | black | 37 | fixed torque,angle positioning | Download |
| K207-2-2-BK | pom | 52 | black | 39.01 | fixed torque,angle positioning | Download |
| K207-2-3-BK | pom | 52 | black | 39.01 | fixed torque,angle positioning | Download |
| K207-3-1-BK | pom | 52 | black | 38.41 | fixed torque,angle positioning | Download |
| K207-3-2-BK | pom | 52 | black | 38.41 | fixed torque,angle positioning | Download |
| K207-3-3-BK | pom | 52 | black | 39.01 | fixed torque,angle positioning | Download |

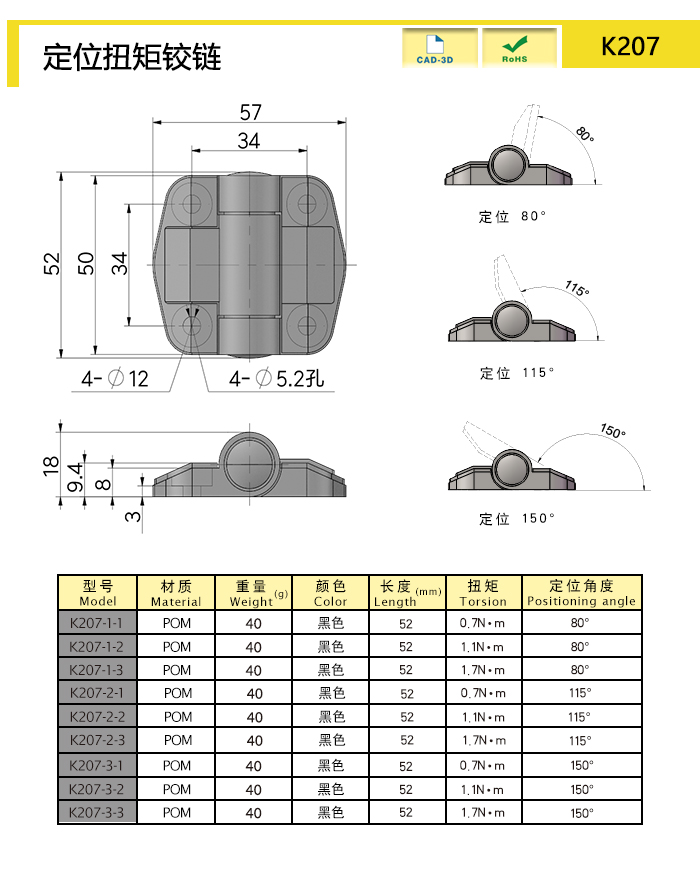

K207-1 positioning opening and closing angle 0 °/80 °
K207-2 positioning opening and closing angle 0 °/115 °
K207-3 positioning opening and closing angle 0 °/150 °
Use the matching cover to hide the screws
Using flame-retardant materials
