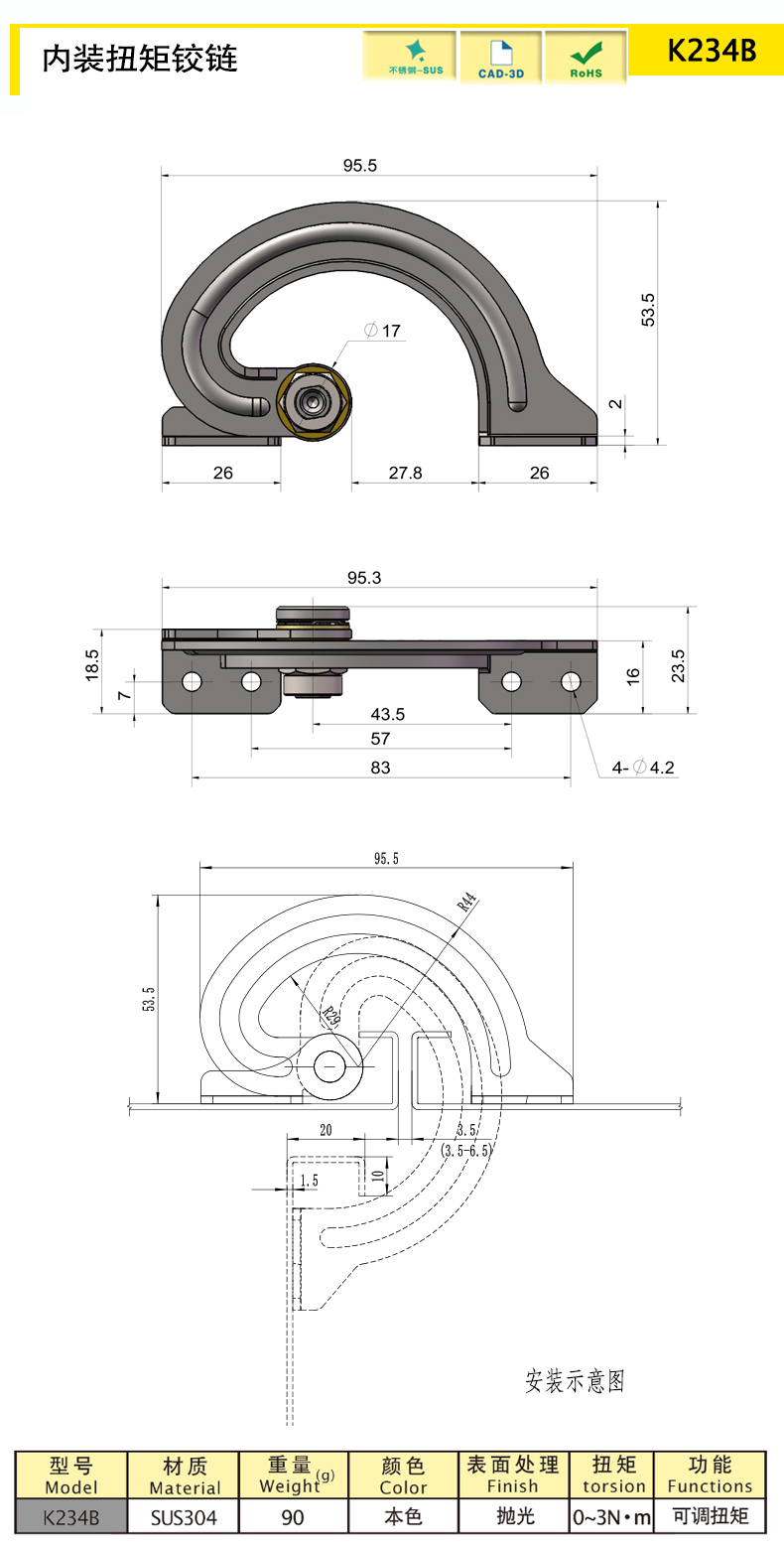

| model | material quality | Length (mm) | colour | Weight (g) | function | 3D |
| K234B | sus304 | 95.5 | silver white | 72.61 | adjustable torque | Download |
Hidden and invisible from the outside
Any stop, can be positioned at any angle within the opening and closing range, with a maximum opening and closing angle of 90 °
Adjustable torque, adjustable opening and closing torque, convenient for use
Installation method: concealed installation
