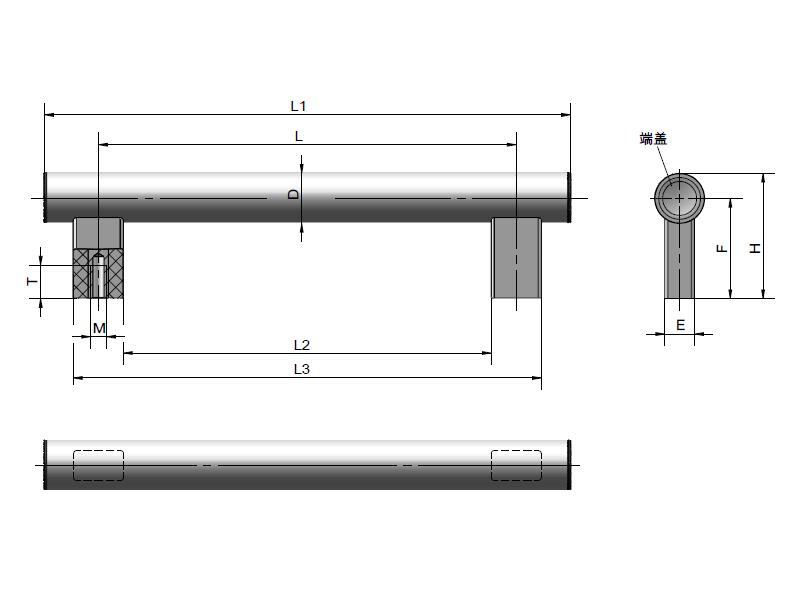

| model | material quality | Tube body | Supporting feet | Cover plate | Weight (g) | Length L | D | L1 | L2 | F | E | M | T | 3D |
| L17-D30-200-W | aluminum alloy | silver white | silver white | white | 200 | 200 | 30 | 265 | 170 | 60 | 18 | m8 | 15 | Download |
| L17-D30-200-B | aluminum alloy | black | black | black | 209.61 | 200 | 30 | 265 | 170 | 60 | 18 | m8 | 15 | Download |
| L17-D30-200-S | aluminum alloy | silver white | black | black | 200 | 200 | 30 | 265 | 170 | 60 | 18 | m8 | 15 | Download |
| L17-D30-250-W | aluminum alloy | silver white | silver white | white | 230 | 250 | 30 | 315 | 220 | 60 | 18 | m8 | 15 | Download |
| L17-D30-250-B | aluminum alloy | black | black | black | 226.01 | 250 | 30 | 315 | 220 | 60 | 18 | m8 | 15 | Download |
| L17-D30-250-S | aluminum alloy | silver white | black | black | 230.01 | 250 | 30 | 315 | 220 | 60 | 18 | m8 | 15 | Download |
| L17-D30-300-W | aluminum alloy | silver white | silver white | white | 200 | 300 | 30 | 365 | 270 | 60 | 18 | m8 | 15 | Download |
| L17-D30-300-B | aluminum alloy | black | black | black | 238.31 | 300 | 30 | 365 | 270 | 60 | 18 | m8 | 15 | Download |
| L17-D30-300-S | aluminum alloy | silver white | black | black | 250 | 300 | 30 | 365 | 270 | 60 | 18 | m8 | 15 | Download |
| L17-D30-400-W | aluminum alloy | silver white | silver white | white | 281.01 | 400 | 30 | 465 | 370 | 60 | 18 | m8 | 15 | Download |
| L17-D30-400-B | aluminum alloy | black | black | black | 281.7 | 400 | 30 | 465 | 370 | 60 | 18 | m8 | 15 | Download |
| L17-D30-400-S | aluminum alloy | silver white | black | black | 288.19 | 400 | 30 | 465 | 370 | 60 | 18 | m8 | 15 | Download |
Translation failure: (Unable to obtain translation result: invalid response or network issue.)
1. Customized non-standard length 2 Optional demands 3 Ultrasonic cleaning and duty-free packaging translation failure: (Unable to obtain translation result: invalid response or network issue.)
SUS304 stainless steel material, suitable for environments with high corrosion resistanceTranslation failure: (Unable to obtain translation result: invalid response or network issue.)1. Customized non-standard length 2 Optional demands 3 Ultrasonic cleaning and duty-free packaging translation failure: (Unable to obtain translation result: invalid response or network issue.)
S: Carbon steel, Galvanized translation failed: (Unable to obtain translation result: invalid response or network issue.)B: Carbon steel, black oxidation treatment translation failed: (Unable to observe translation result: invalid response or network issue.)
The locking mechanism is built into the knob
Translation failure: (Unable to obtain translation result: invalid response or network issue.)
