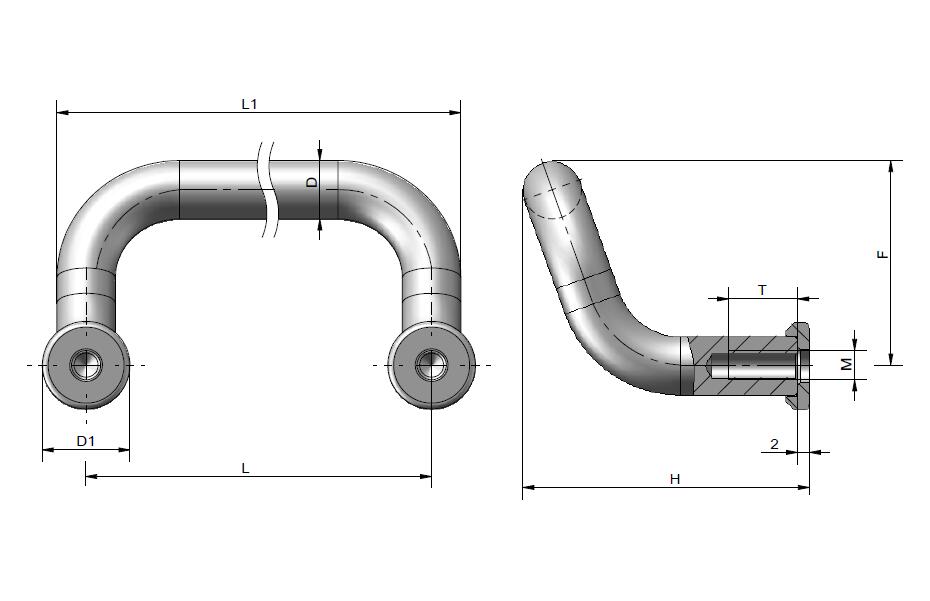

| model | material quality | Tube body | Weight (g) | Length L | D | L1 | F | M | T | 3D |
| L23ST-D10-100 | steel | silver white | 118.21 | 100 | 10 | 110 | 35 | m5 | 13 | Download |
| L23B-D10-120 | sus304 | silver white | 140.85 | 120 | 10 | 130 | 35 | m5 | 13 | Download |
| L23ST-D10-120 | steel | silver white | 140.06 | 120 | 10 | 130 | 35 | m5 | 13 | Download |
| L23B-D10-88 | sus304 | silver white | 122.11 | 88 | 10 | 98 | 35 | m5 | 13 | Download |
| L23ST-D10-88 | steel | silver white | 1 | 88 | 10 | 98 | 35 | m5 | 13 | Download |
| L23B-D10-100 | sus304 | silver white | 129.32 | 100 | 10 | 110 | 35 | m5 | 13 | Download |
Installation: Installation screw with M8 support pin failed translation: (Unable to obtain translation result: Invalid response or network issue.)
Application: Can be used in relative position with L20, translation failure: (Unable to observe translation result: invalid response or network issue.)
The length of T can be provided according to customer needs. Translation failure: (Unable to obtain translation result: invalid response or network issue.)
1. Customized non-standard length 2 Optional screws 3. Ultrasonic cleaning and duty-free packaging 4. Laser engrafting logo translation failure: (Unable to obtain translation result: invalid response or network problem.)
Tubular handle:
Translation failure: (Unable to obtain translation result: invalid response or network issue.)
