| model | material quality | Tube body | Weight (g) | Length L | D | M | T | D1 | 3D |
| L30B-D25-350-B | sus304 | silver white | 155.01 | 350 | 25 | m10 | 20 | 32 | Download |
| L30B-D25-400-B | sus304 | silver white | 155.01 | 400 | 25 | m10 | 20 | 32 | Download |
| L30B-D25-250-A | sus304 | silver white | 155.01 | 250 | 25 | m10 | 17 | 32 | Download |
| L30B-D25-300-A | sus304 | silver white | 155.01 | 300 | 25 | m10 | 17 | 32 | Download |
| L30B-D25-350-A | sus304 | silver white | 155.01 | 350 | 25 | m10 | 17 | 32 | Download |
| L30B-D25-400-A | sus304 | silver white | 252.02 | 400 | 25 | m10 | 17 | 32 | Download |
| L30B-D25-250-B | sus304 | silver white | 155.01 | 250 | 25 | m10 | 20 | 32 | Download |
| L30B-D25-300-B | sus304 | silver white | 155.01 | 300 | 25 | m10 | 20 | 32 | Download |
管式手柄：
手柄：材质SUS304，经磨砂处理，光亮饰面
螺纹嵌毂/安装螺杆：材质不锈钢
安装：带螺纹孔

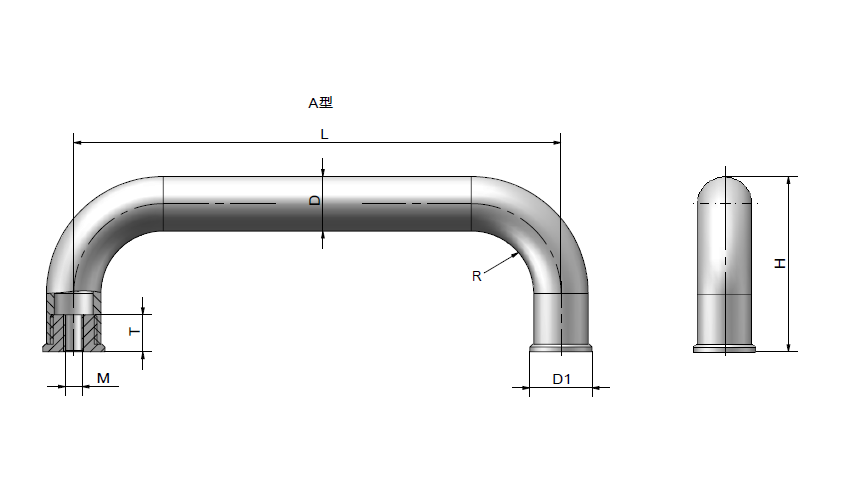

A型带螺纹盲孔

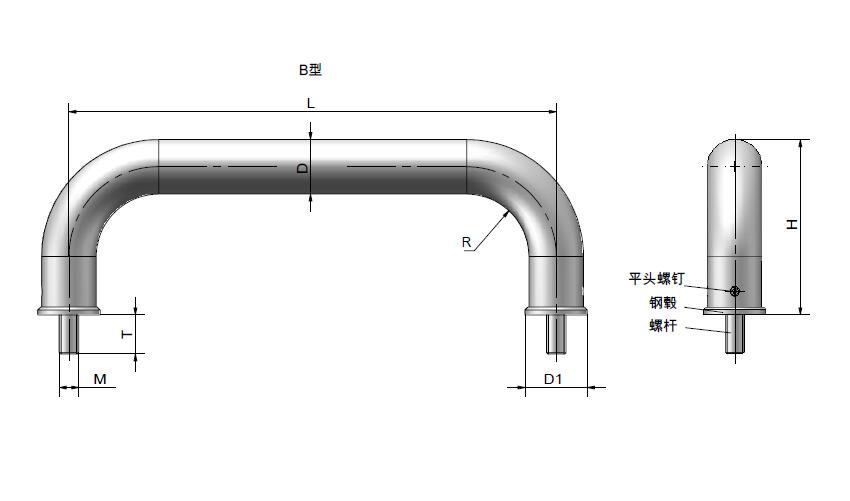

B型带安装螺杆
手柄制作大方美观实用，材质不锈钢耐腐蚀。可在相对位置配对使用
