| model | material quality | Tube body | Weight (g) | Length L | D | M | T | D1 | 3D |
| L31-D25-200-RD | steel | red | 1 | 200 | 25 | m8 | 16 | 35 | Download |
| L31-D25-200-YL | steel | yellow | 1 | 200 | 25 | m8 | 16 | 35 | Download |
| L31-D25-300-RD | steel | red | 1 | 300 | 25 | m8 | 16 | 35 | Download |
| L31-D25-300-YL | steel | yellow | 1 | 300 | 25 | m8 | 16 | 35 | Download |
| L31-D25-400-RD | steel | red | 1 | 400 | 25 | m8 | 16 | 35 | Download |
| L31-D25-400-YL | steel | yellow | 1 | 400 | 25 | m8 | 16 | 35 | Download |

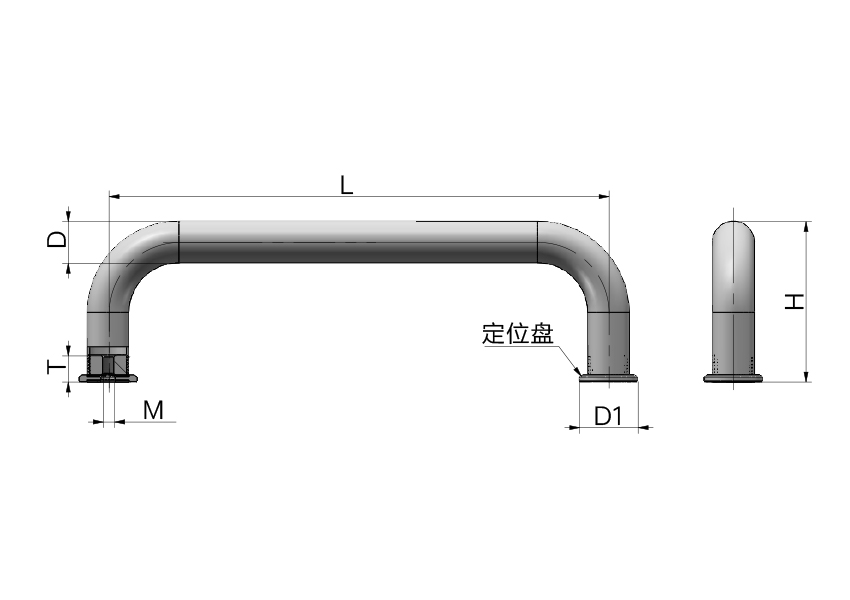

Tubular bending handle:
Positioning disc: available on demand
Installation: with threaded holes
The positioning disk can accurately match the installation holes of the cabinet
