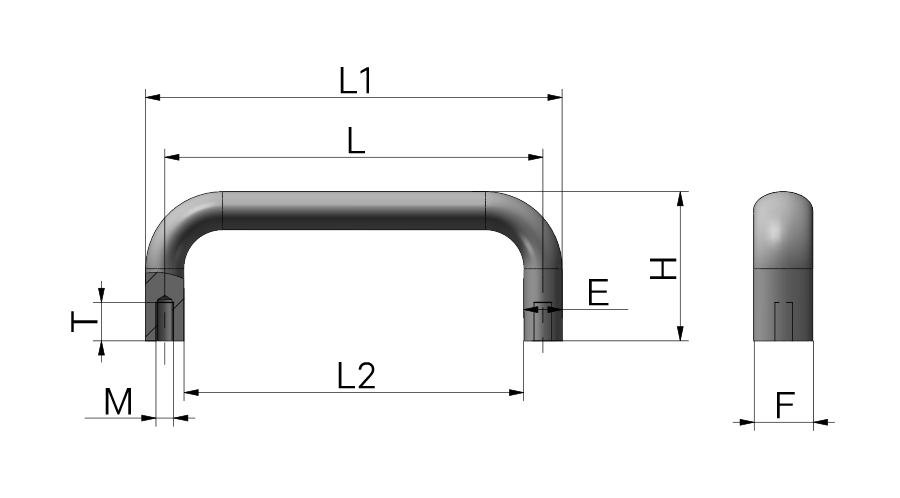

| model | material quality | Tube body | Weight (g) | Length L | L1 | L2 | H | F | E | M | T | 3D |
| L34-16-75-BK | aluminum alloy | black | 34.71 | 75 | 83 | 67 | 38 | 16 | 8 | m5 | 12 | Download |
| L34-16-75-SR | aluminum alloy | silver white | 34.81 | 75 | 83 | 67 | 38 | 16 | 8 | m5 | 12 | Download |
| L34-16-150-BK | aluminum alloy | black | 55.01 | 150 | 158 | 142 | 38 | 16 | 8 | m5 | 12 | Download |
| L34-16-150-SR | aluminum alloy | silver white | 55.01 | 150 | 158 | 142 | 38 | 16 | 8 | m5 | 12 | Download |
| L34-20-100-BK | aluminum alloy | black | 88.81 | 100 | 113 | 87 | 47 | 20 | 13 | m6 | 15 | Download |
| L34-20-100-BS | aluminum alloy | silver white | 89.51 | 100 | 113 | 87 | 47 | 20 | 13 | m6 | 15 | Download |
| L34-20-120-BK | aluminum alloy | black | 103.21 | 120 | 133 | 107 | 50.5 | 20 | 13 | m6 | 15 | Download |
| L34-20-120-BS | aluminum alloy | silver white | 102.31 | 120 | 133 | 107 | 50.5 | 20 | 13 | m6 | 15 | Download |
| L34-20-128-BK | aluminum alloy | black | 110.01 | 128 | 141 | 115 | 50.5 | 20 | 13 | m6 | 15 | Download |
| L34-20-128-BS | aluminum alloy | silver white | 110.02 | 128 | 141 | 115 | 50.5 | 20 | 13 | m6 | 15 | Download |
| L34-20-128-SR | aluminum alloy | silver white | 109.01 | 128 | 141 | 115 | 50.5 | 20 | 13 | m6 | 15 | Download |
| L34-20-160-BK | aluminum alloy | black | 199.31 | 160 | 173 | 147 | 50.5 | 20 | 13 | m6 | 15 | Download |
The handle is extruded from aluminum
Installation: with threaded holes
handle
