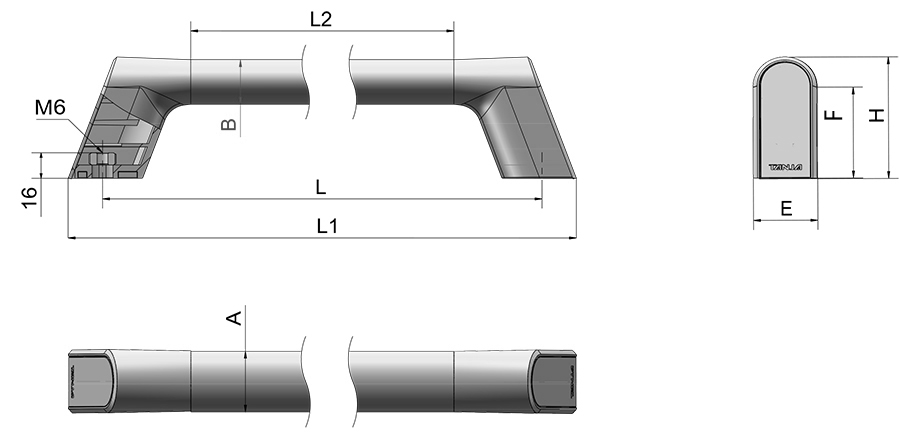

| model | material quality | Tube body | Supporting feet | Cover plate | Weight (g) | Length L | L1 | L2 | H | F | E | A | B | 3D |
| L43-26-200-N | aluminum alloy | black | black | yellow | 80 | 200 | 230 | 125 | 52 | 38.7 | 27.4 | 26 | 19 | Download |
| L43-26-200-B | aluminum alloy | black | black | black | 80.65 | 200 | 230 | 125 | 52 | 38.7 | 27.4 | 26 | 19 | Download |
| L43-26-200-S | aluminum alloy | silver white | black | silver white | 46.01 | 200 | 230 | 125 | 52 | 38.7 | 27.4 | 26 | 19 | Download |
| L43-26-200-W | aluminum alloy | silver white | silver white | white | 81.8 | 200 | 230 | 125 | 52 | 38.7 | 27.4 | 26 | 19 | Download |
| L43-26-300-N | aluminum alloy | black | black | yellow | 104.01 | 300 | 330 | 225 | 52 | 38.7 | 27.4 | 26 | 19 | Download |
| L43-26-300-B | aluminum alloy | black | black | black | 104.01 | 300 | 330 | 225 | 52 | 38.7 | 27.4 | 26 | 19 | Download |
| L43-26-300-S | aluminum alloy | silver white | black | silver white | 104 | 300 | 330 | 225 | 52 | 38.7 | 27.4 | 26 | 19 | Download |
| L43-26-300-W | aluminum alloy | silver white | silver white | white | 104.01 | 300 | 330 | 225 | 52 | 38.7 | 27.4 | 26 | 19 | Download |
| L43-26-400-N | aluminum alloy | black | black | yellow | 125 | 400 | 430 | 325 | 52 | 38.7 | 27.4 | 26 | 19 | Download |
| L43-26-400-B | aluminum alloy | black | black | black | 115.01 | 400 | 430 | 325 | 52 | 38.7 | 27.4 | 26 | 19 | Download |
| L43-26-400-S | aluminum alloy | silver white | black | silver white | 115.01 | 400 | 430 | 325 | 52 | 38.7 | 27.4 | 26 | 19 | Download |
| L43-26-400-W | aluminum alloy | silver white | silver white | white | 130.01 | 400 | 430 | 325 | 52 | 38.7 | 27.4 | 26 | 19 | Download |
Tubular handle:
Support legs,Polyamide (PA), side cover plate,Polyamide (PA)
Installation: The support feet have through-holes for hexagonal screws M6
W-type: anodized pipe body, silver white, matte finish; Support legs, silver white, matte finish; Side cover, white, matte finish
Type B: Black body with matte finish; Black legs with matte finish; Side cover, black, matte finish
S-type: pipe body anodized, silver white, matte finish; Support legs, black, matte finish; Side cover, silver white, matte finish
N-type: black body with matte finish; Support legs, black, matte finish; Side cover, yellow, matte finish
