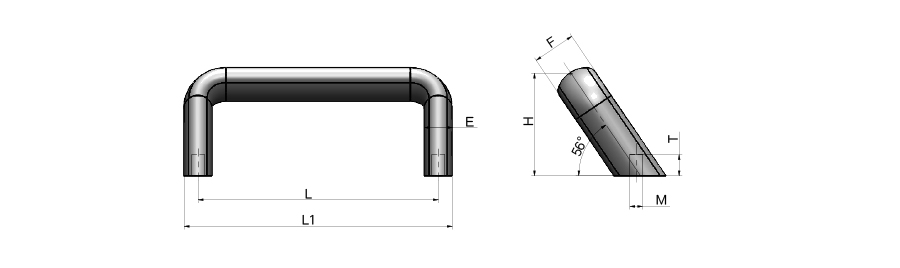

| model | material quality | Tube body | Weight (g) | Length L | L1 | H | F | E | M | T | 3D |
| L77-20-152-BK | aluminum alloy | black | 119.01 | 152 | 165 | 48 | 20 | 13 | m6 | 10 | Download |
| L77-20-152-SR | aluminum alloy | silver white | 118.01 | 152 | 165 | 48 | 20 | 13 | m6 | 10 | Download |
| L77-20-203-BK | aluminum alloy | black | 146.71 | 203 | 216 | 48 | 20 | 13 | m6 | 10 | Download |
| L77-20-203-SR | aluminum alloy | silver white | 146.72 | 203 | 216 | 48 | 20 | 13 | m6 | 10 | Download |
| L77-26-128-BK | aluminum alloy | black | 183.01 | 128 | 141 | 48 | 26 | 13 | m6 | 10 | Download |
| L77-26-128-SR | aluminum alloy | silver white | 183.01 | 128 | 141 | 48 | 26 | 13 | m6 | 10 | Download |
| L77-26-160-BK | aluminum alloy | black | 216.01 | 160 | 173 | 48 | 26 | 13 | m6 | 10 | Download |
| L77-26-160-SR | aluminum alloy | silver white | 216.01 | 160 | 173 | 48 | 26 | 13 | m6 | 10 | Download |
| L77-20-128-BK | aluminum alloy | black | 105.01 | 128 | 141 | 48 | 20 | 13 | m6 | 10 | Download |
| L77-20-128-SR | aluminum alloy | silver white | 107.01 | 128 | 141 | 48 | 20 | 13 | m6 | 10 | Download |
Material: Aluminum alloy 6063
Installation: threaded blind hole
