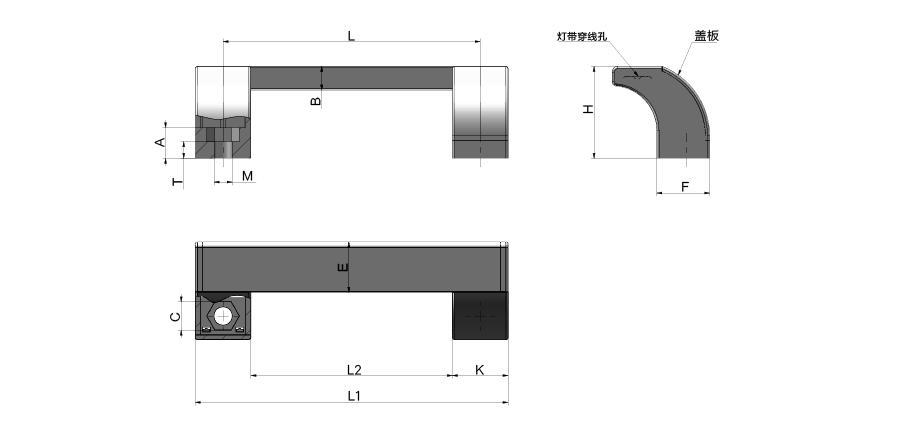

| model | material quality | Tube body | Supporting feet | Cover plate | Weight (g) | Length L | L1 | L2 | H | F | E | M | T | C | K | A | B | 3D |
| L86D-23-120-YL | aluminum alloy | black | black | yellow | 90.01 | 120 | 146 | 94 | 43 | 25 | 23 | 8.5 | 8 | 13.2 | 26 | 14 | 11 | Download |
| L86-23-120-YL | aluminum alloy | black | black | yellow | 90.01 | 120 | 146 | 94 | 43 | 25 | 23 | 8.5 | 8 | 13.2 | 26 | 14 | 11 | Download |
| L86D-23-150-YL | aluminum alloy | black | black | yellow | 105.01 | 150 | 176 | 124 | 43 | 25 | 23 | 8.5 | 8 | 13.2 | 26 | 14 | 11 | Download |
| L86-23-150-YL | aluminum alloy | black | black | yellow | 105.01 | 150 | 176 | 124 | 43 | 25 | 23 | 8.5 | 8 | 13.2 | 26 | 14 | 11 | Download |
| L86D-23-180-YL | aluminum alloy | black | black | yellow | 120.01 | 180 | 206 | 154 | 43 | 25 | 23 | 8.5 | 8 | 13.2 | 26 | 14 | 11 | Download |
| L86-23-180-YL | aluminum alloy | black | black | yellow | 120.01 | 180 | 206 | 154 | 43 | 25 | 23 | 8.5 | 8 | 13.2 | 26 | 14 | 11 | Download |
| L86D-23-120-WH | aluminum alloy | black | black | white | 90.01 | 120 | 146 | 94 | 43 | 25 | 23 | 8.5 | 8 | 13.2 | 26 | 14 | 11 | Download |
| L86-23-120-WH | aluminum alloy | black | black | white | 90.01 | 120 | 146 | 94 | 43 | 25 | 23 | 8.5 | 8 | 13.2 | 26 | 14 | 11 | Download |
| L86D-23-150-WH | aluminum alloy | black | black | white | 105.01 | 150 | 176 | 124 | 43 | 25 | 23 | 8.5 | 8 | 13.2 | 26 | 14 | 11 | Download |
| L86-23-150-WH | aluminum alloy | black | black | white | 105.01 | 150 | 176 | 124 | 43 | 25 | 23 | 8.5 | 8 | 13.2 | 26 | 14 | 11 | Download |
| L86D-23-180-WH | aluminum alloy | black | black | white | 120.01 | 180 | 206 | 154 | 43 | 25 | 23 | 8.5 | 8 | 13.2 | 26 | 14 | 11 | Download |
| L86-23-180-WH | aluminum alloy | black | black | white | 120.01 | 180 | 206 | 154 | 43 | 25 | 23 | 8.5 | 8 | 13.2 | 26 | 14 | 11 | Download |
Handle aluminum alloy, black anodized
Support ABS, black
Cover ABS, yellow, white, orange
Equipped with threading holes, can install hidden light strips
L86D factory pre installed light strip
Installation: Both front and back installations are acceptable
