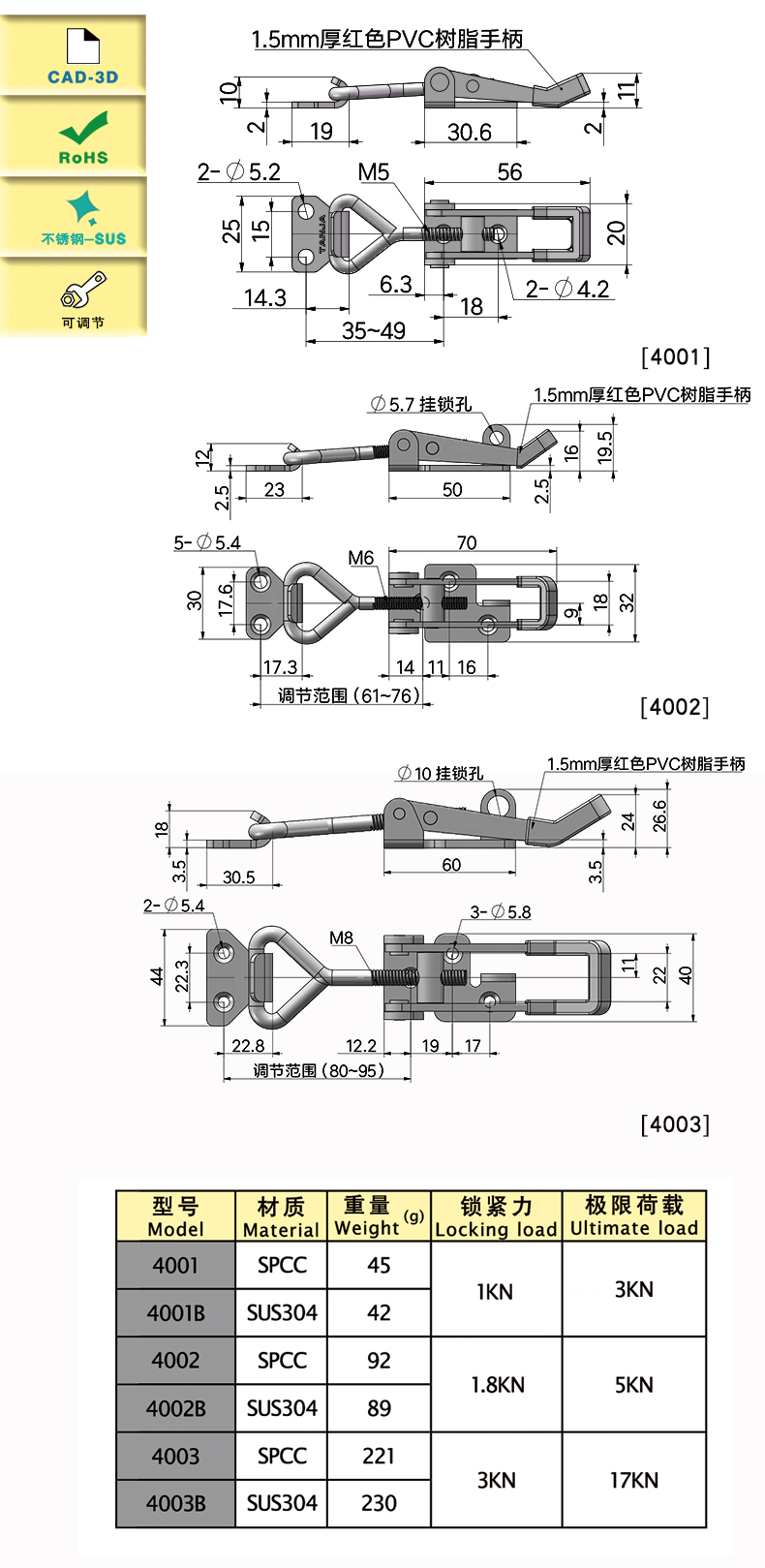

| model | function | Length (mm) | material quality | Weight (g) | Locking force (N) | Ultimate load (N) | 3D |
| 4001B | adjustable | 87—99.5 | sus304 | 46.01 | 1000 | Download | |
| 4002B | adjustable,with lock | 124—134 | sus304 | 94.34 | 1800 | Download | |
| 4003B | adjustable,with lock | 179—189 | sus304 | 233.21 | 3000 | Download | |
| AD4001B | lightweight | 87—99.5 | sus304 | 41.21 | 1000 | 3000 | Download |
| 4001 | adjustable | 87—99.5 | spcc | 40.51 | 1000 | 3000 | Download |
| 4001B（TJ） | adjustable | 87—99.5 | sus304 | / | 1000 | 3000 | Download |
| 4002 | adjustable,with lock | 124—134 | spcc | 92.41 | 1800 | 3000 | Download |
| 4002B（TJ） | adjustable,with lock | 124—134 | sus304 | / | 1800 | 3000 | Download |
| 4003 | adjustable,with lock | 179—189 | spcc | 215.34 | 3000 | 3000 | Download |
| 4003B（TJ） | adjustable,with lock | 179—189 | sus304 | 230.21 | 3000 | 3000 | Download |
The screw can be adjusted to change the installation distance and locking force
Heavy duty, suitable for occasions with greater pulling force
Adjustable toggle latch
