| model | function | Length (mm) | material quality | Weight (g) | Locking force (N) | 3D |

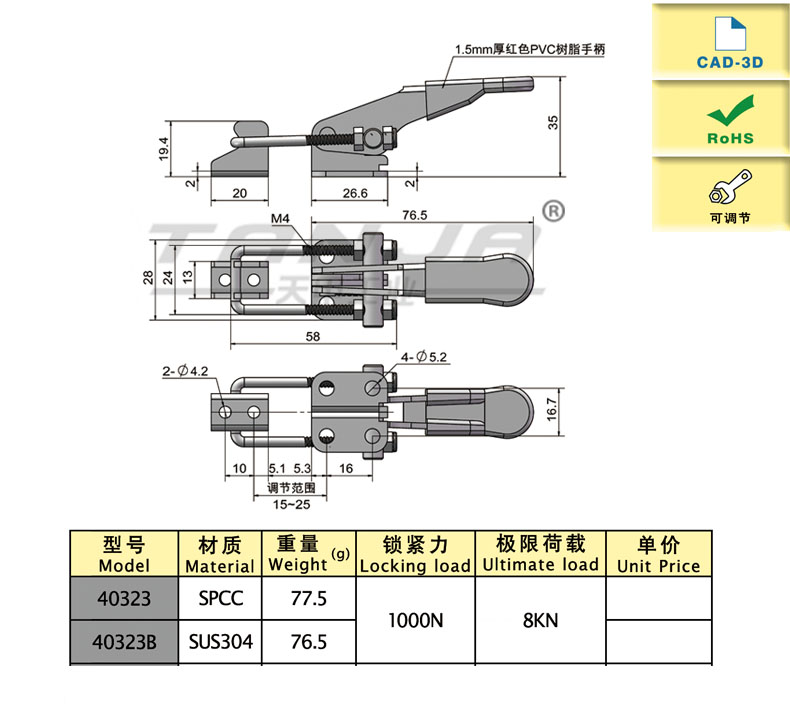

| 40323 | adjustable | 119.2 | spcc | 70.21 | 1000 | Download |
| 40323B | adjustable | 119.2 | sus304 | 75.91 | 1000 | Download |

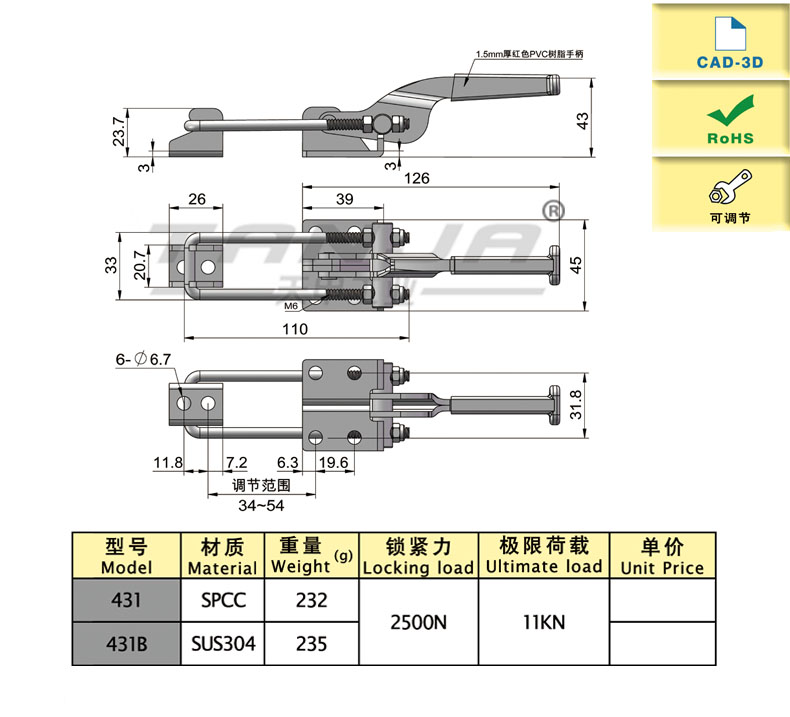

| 431 | adjustable | 210 | spcc | 232.02 | 2500 | Download |
| 431B | adjustable | 210 | sus304 | 231.51 | 2500 | Download |

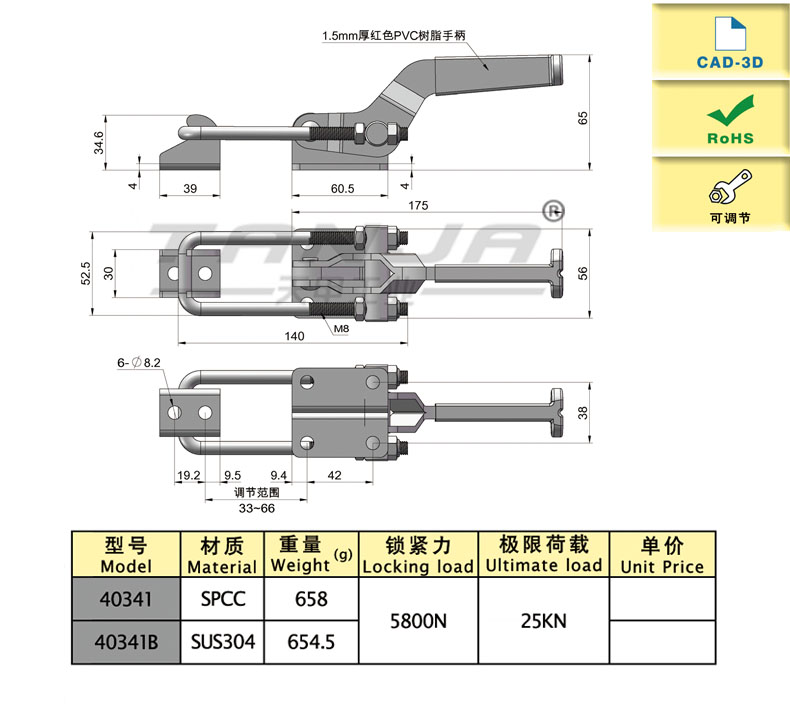

| 40341 | adjustable | 290 | spcc | 700.01 | 5800 | Download |
| 40341B | adjustable | 290 | sus304 | 618.61 | 5800 | Download |
The screw can be adjusted to change the installation distance and locking force;
Heavy duty, suitable for occasions with greater pulling force
